Lockheed U-2S

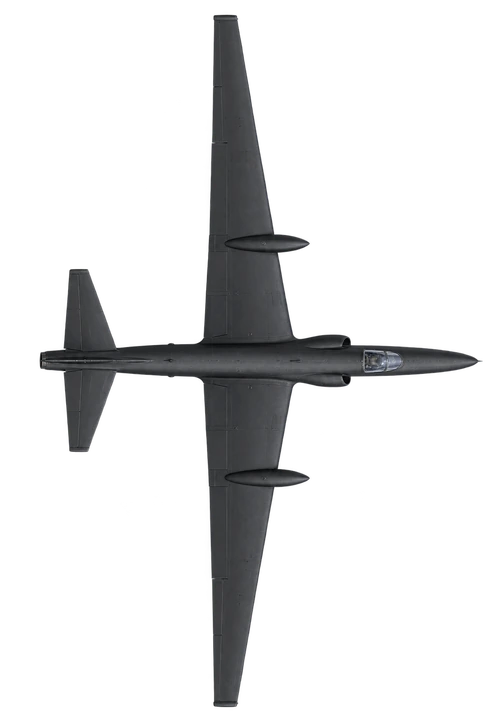

Explore the Lockheed U-2S in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed U-2, nicknamed the "Dragon Lady", is an American single-engine, high–altitude reconnaissance aircraft operated by the United States Air Force (USAF) and the Central Intelligence Agency (CIA) since the 1950s. Designed for all-weather, day-and-night intelligence gathering at altitudes above 70,000 feet, the U-2 has played a pivotal role in aerial surveillance for decades.
Summary of “Lockheed U-2” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed U-2S by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/U2/), CC BY 4.0Specifications
- Length
- 19.2 m63 ft
- Wingspan
- 31.39 m103 ft
- Max take-off weight
- 18.14 t40,000 lb
- Cruise speed
- 763 km/h474 mph
- Max speed
- 805 km/h500 mph
- Range
- 11,279 km7,008 mi
- Ceiling
- 24,384 m80,000 ft
- Engines
- 1 × General Electric F118-101 turbofan engine
- Power
- 17,000 lbf (76 kN) thrust
- First flight
- 1955
- In service
- 1956
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
