Bell UH-1H Iroquois
0 airline colour schemes · Military

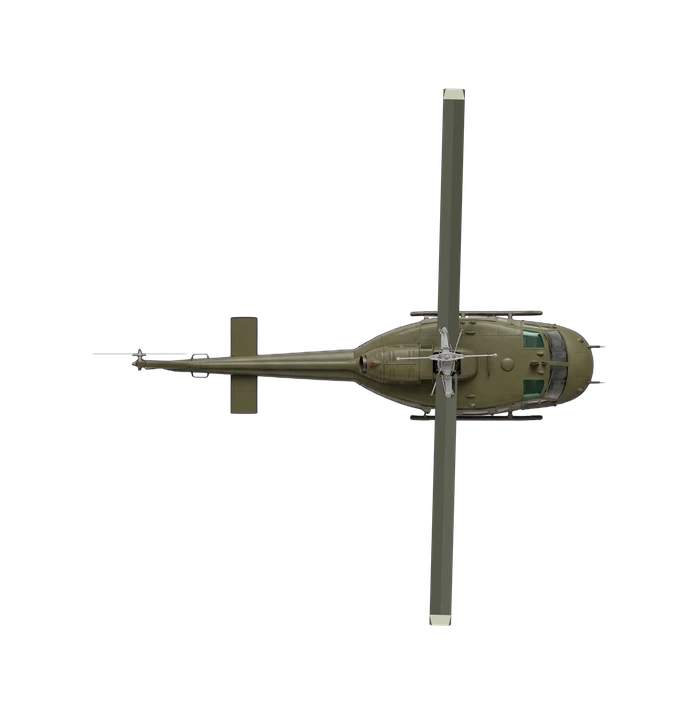

Explore the Bell UH-1H Iroquois in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Bell UH-1 Iroquois is a utility military helicopter designed and produced by the American aerospace company Bell Helicopter. It is the first member of the prolific Huey family, as well as the first turbine-powered helicopter in service with the United States military.
Summary of “Bell UH-1 Iroquois” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Bell UH-1H Iroquois by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/UH1/), CC BY 4.0Specifications
- Length
- 17.4 m57.1 ft
- Rotor diameter
- 14.63 m48 ft
- Max take-off weight
- 4.31 t9,500 lb
- Cruise speed
- 204 km/h127 mph
- Max speed
- 220 km/h137 mph
- Range
- 511 km318 mi
- Ceiling
- 3,840 m12,600 ft
- Engines
- 1× Lycoming T53 (turboshaft)
- Power
- 1 400 hp
- First flight
- 1956
- In service
- 1967
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
