Bell 206B JetRanger II

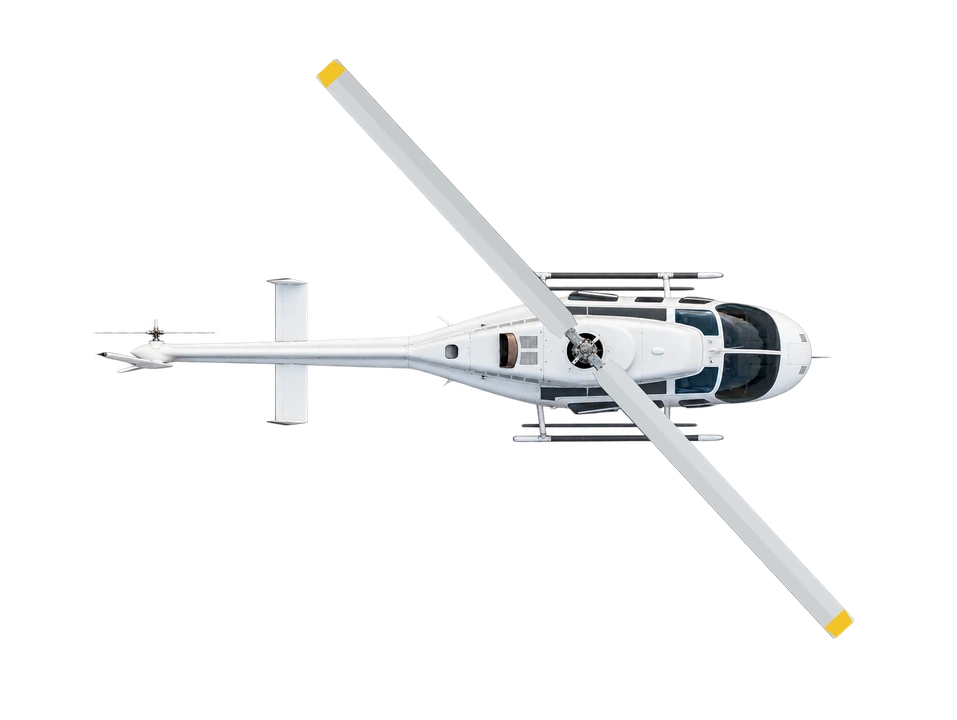

Explore the Bell 206B JetRanger II in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Bell 206 is a family of two-bladed, single- and twin-engined helicopters, manufactured by Bell Helicopter at its Mirabel, Quebec, plant. Originally developed as the Bell YOH-4 for the United States Army's Light Observation Helicopter program, it was not selected by the Army. Bell redesigned the airframe and successfully marketed the aircraft commercially as the five-place Bell 206A JetRanger. The new design was eventually selected by the Army as the OH-58 Kiowa.
Summary of “Bell 206” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Bell 206B JetRanger II by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/B06/), CC BY 4.0Specifications
- Length
- 11.82 m38.8 ft
- Rotor diameter
- 10.16 m33.3 ft
- Max take-off weight
- 1.45 t3,200 lb
- Cruise speed
- 222 km/h138 mph
- Max speed
- 226 km/h140 mph
- Range
- 624 km388 mi
- Ceiling
- 6,096 m20,000 ft
- Engines
- 1 × Allison 250-C20 turboshaft engine
- Power
- 400 hp (298 kW)
- First flight
- 1962
- In service
- 1967
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
