Leonardo AW101 Merlin
0 airline colour schemes · Military

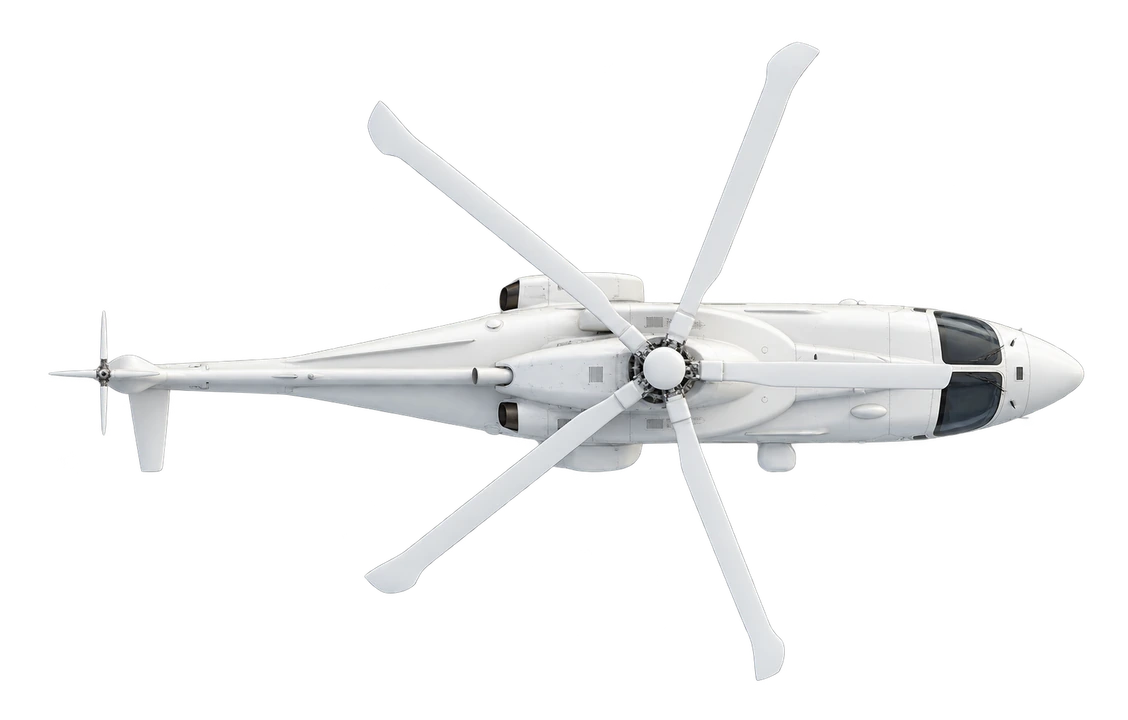

Explore the Leonardo AW101 Merlin in side view and top view to compare its silhouette and proportions.
From Wikipedia
The AgustaWestland AW101 is a medium-lift helicopter in military and civil use. First flown in 1987, it was developed by a joint venture between Westland Helicopters in the United Kingdom and Agusta in Italy in response to national requirements for a modern naval utility helicopter. Several operators, including the armed forces of Britain, Denmark, and Portugal, use the name Merlin for their AW101 aircraft. It is manufactured at factories in Yeovil, England, and Vergiate, Italy. Licensed assembly work has also taken place in Japan and the United States.
Summary of “AgustaWestland AW101” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Leonardo AW101 Merlin by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/AW39/), CC BY 4.0Specifications
- Length
- 22.8 m74.8 ft
- Rotor diameter
- 18.6 m61 ft
- Max take-off weight
- 15.6 t34,400 lb
- Cruise speed
- 278 km/h173 mph
- Max speed
- 309 km/h192 mph
- Range
- 1,389 km863 mi
- Ceiling
- 4,575 m15,000 ft
- Engines
- 2× P&WC PT6C-67C (turboshaft)
- Power
- 2× 1 531 hp
- First flight
- 1987
- In service
- 1999
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
