Leonardo AW109 Power (PW206C, 2,850 kg version)

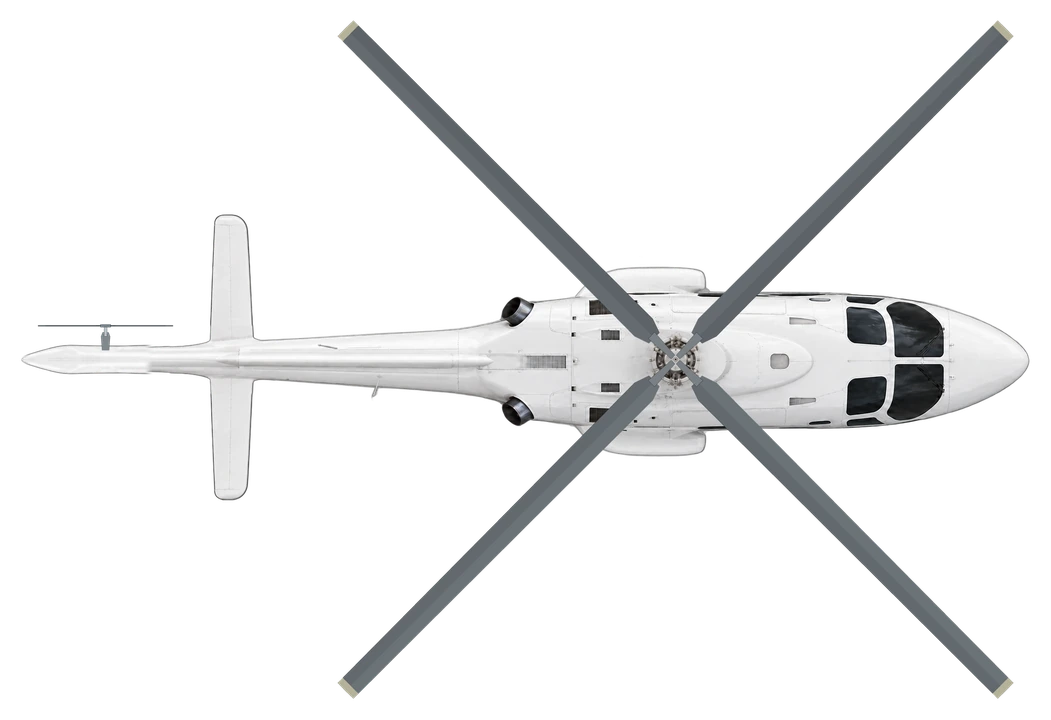

Explore the Leonardo AW109 Power (PW206C, 2,850 kg version) in side view and top view to compare its silhouette and proportions.
From Wikipedia
The AgustaWestland AW109, originally the Agusta A109, is a lightweight, twin-engine, eight-seat multi-purpose helicopter designed and initially produced by the Italian rotorcraft manufacturer Agusta. It was the first all-Italian helicopter to be mass-produced. Its production has been continued by Agusta's successor companies,formerly AgustaWestland, merged into the new Finmeccanica since 2016, presently Leonardo.
Summary of “AgustaWestland AW109” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Leonardo AW109 Power (PW206C, 2,850 kg version) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/A109/), CC BY 4.0Specifications
- Length
- 11.45 m37.6 ft
- Rotor diameter
- 11 m36.1 ft
- Max take-off weight
- 2.85 t6,300 lb
- Cruise speed
- 285 km/h177 mph
- Max speed
- 285 km/h177 mph
- Range
- 948 km589 mi
- Ceiling
- 5,974 m19,600 ft
- Engines
- 2 × Pratt & Whitney Canada PW206C Turboshaft engine
- Power
- 2 × 477 kW (640 shp) take-off; 2 × 423 kW (567 shp) continuous
- First flight
- 1971
- In service
- 1997
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
