Rockwell B-1B Lancer

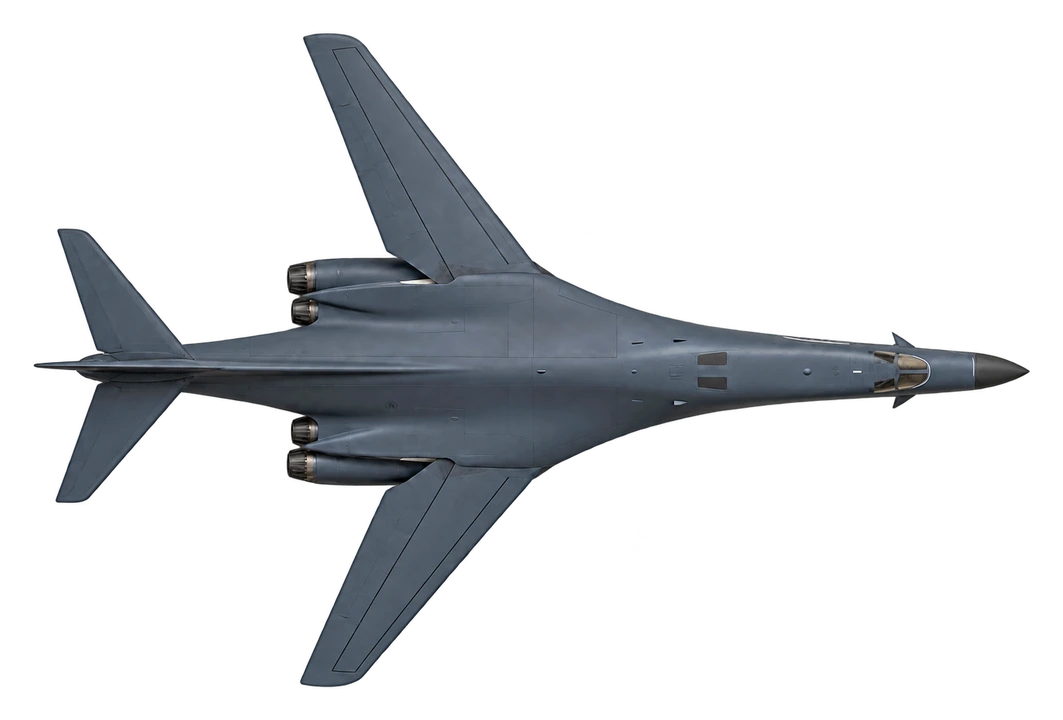

Explore the Rockwell B-1B Lancer in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Rockwell B-1 Lancer is a supersonic variable-sweep wing heavy bomber used by the United States Air Force. It has been nicknamed the "Bone". As of 2026, it is one of the U.S. Air Force's three strategic bombers, along with the B-2 Spirit and the B-52 Stratofortress. It carries up to a 75,000-pound (34,000 kg) payload.
Summary of “Rockwell B-1 Lancer” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Rockwell B-1B Lancer by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/B1/), CC BY 4.0Specifications
- Length
- 44.5 m146 ft
- Wingspan
- 41.8 m137.1 ft
- Max take-off weight
- 216.4 t477,100 lb
- Max speed
- 1,335 km/h830 mph
- Range
- 9,400 km5,841 mi
- Ceiling
- 18,000 m59,100 ft
- Engines
- 4× GE F101-GE-102 (afterburning turbofan)
- Power
- 4× 136 kN (w/ afterburner)
- First flight
- 1974
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
