Lockheed Martin F-22A Raptor

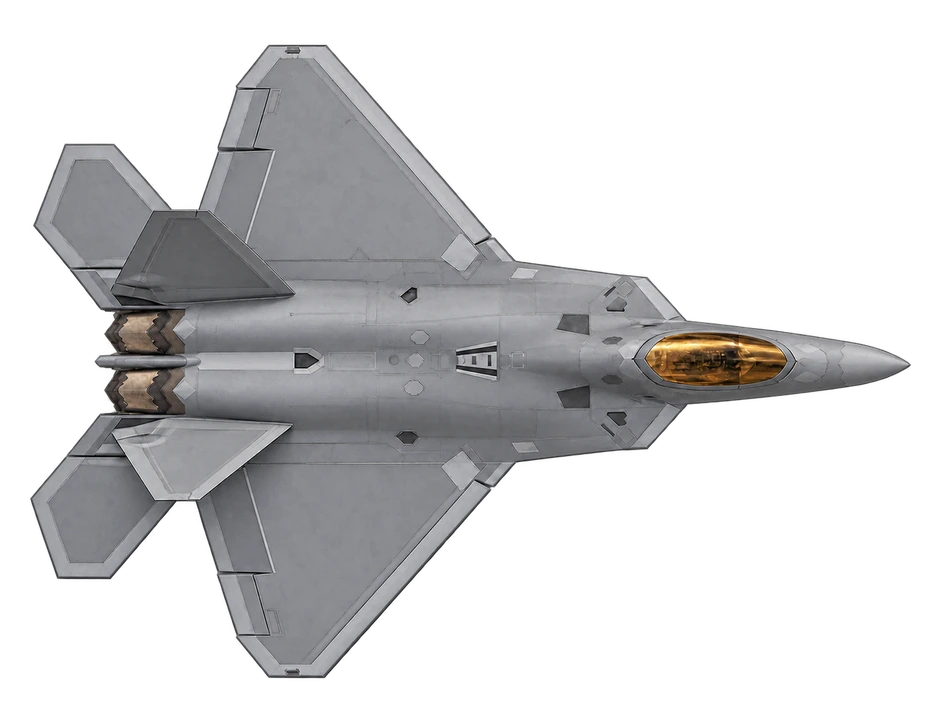

Explore the Lockheed Martin F-22A Raptor in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed Martin–Boeing F-22 Raptor is an American twin-engine, jet-powered, all-weather, supersonic stealth fighter aircraft. As a product of the United States Air Force's (USAF) Advanced Tactical Fighter (ATF) program, the aircraft was designed as an air superiority fighter, but also incorporates ground attack, electronic warfare, and signals intelligence capabilities. The prime contractor, Lockheed Martin, built most of the F-22 airframe and weapons systems and conducted final assembly, while program partner Boeing provided the wings, aft fuselage, avionics integration, and training systems.
Summary of “Lockheed Martin F-22 Raptor” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed Martin F-22A Raptor by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/F22/), CC BY 4.0Specifications
- Length
- 18.92 m62.1 ft
- Wingspan
- 13.56 m44.5 ft
- Max take-off weight
- 37.88 t83,500 lb
- Max speed
- 2,414 km/h1,500 mph
- Range
- 2,963 km1,841 mi
- Ceiling
- 19,812 m65,000 ft
- Engines
- 2 × Pratt & Whitney F119 -PW-100 augmented turbofans
- Power
- 26,000 lbf (120 kN) thrust each dry, 35,000 lbf (160 kN) with afterburner
- First flight
- 1997
- In service
- 2005
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
