Lockheed F-35A Lightning II

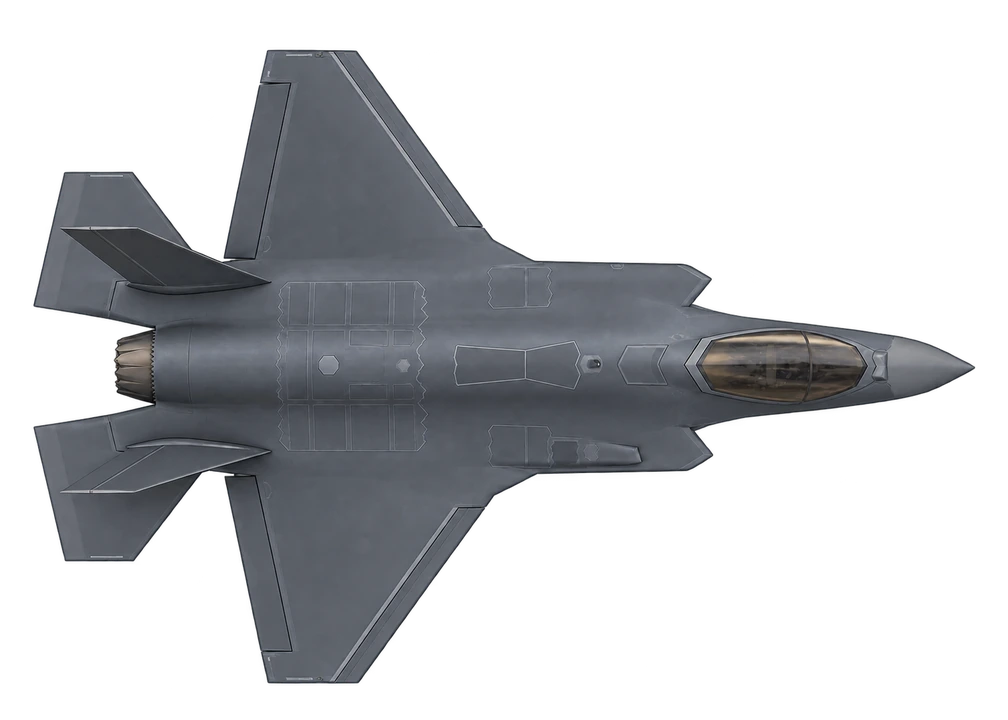

Explore the Lockheed F-35A Lightning II in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed Martin F-35 Lightning II is an American family of single-seat, single-engine, supersonic stealth strike fighters. A multirole combat aircraft designed for air superiority and strike missions, it also has electronic warfare and intelligence, surveillance, and reconnaissance capabilities. Lockheed Martin is the prime contractor, with partners Northrop Grumman and BAE Systems. The aircraft has three main variants: the conventional takeoff and landing F-35A, the short take-off and vertical-landing F-35B, and the catapult-assisted take-off but arrested recovery F-35C. With 883 aircraft in service as of 2025, it is the world's fourth-most-numerous military aircraft, and most-numerous stealth aircraft.
Summary of “Lockheed Martin F-35 Lightning II” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed F-35A Lightning II by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/F35/), CC BY 4.0Specifications
- Length
- 15.7 m51.5 ft
- Wingspan
- 10.7 m35.1 ft
- Max take-off weight
- 31.8 t70,100 lb
- Cruise speed
- 1,170 km/h727 mph
- Max speed
- 1,930 km/h1,199 mph
- Range
- 2,200 km1,367 mi
- Ceiling
- 15,240 m50,000 ft
- Engines
- 1× P&W F135
- Power
- 191 kN (w/ afterburner)
- First flight
- 2006
- In service
- 2015
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
