Lockheed C-5M Super Galaxy

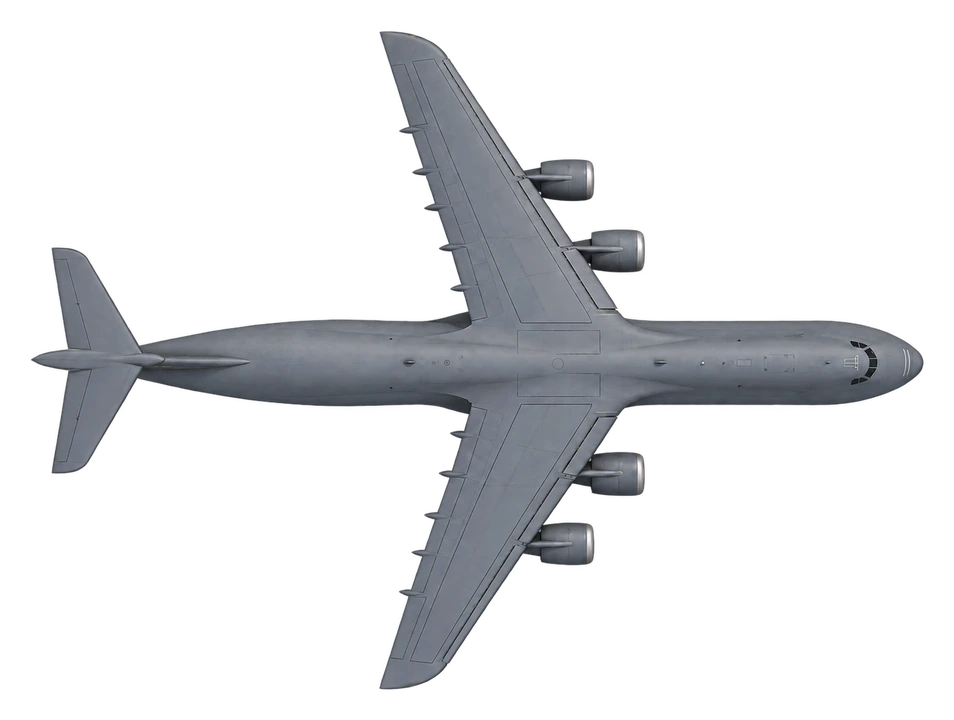

Explore the Lockheed C-5M Super Galaxy in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed C-5 Galaxy is a large four-engine military transport aircraft designed and built by Lockheed Corporation, and now maintained and upgraded by its successor, Lockheed Martin. It provides the United States Air Force (USAF) with a heavy intercontinental-range strategic airlift capability, one that can carry outsized and oversized loads, including all air-certifiable cargo. The Galaxy has many similarities to the smaller Lockheed C-141 Starlifter and the later Boeing C-17 Globemaster III. The C-5 is among the largest military aircraft in the world. All 52 in-service aircraft have been upgraded to the C-5M Super Galaxy with new engines and modernized avionics designed to extend its service life to 2040 and beyond.
Summary of “Lockheed C-5 Galaxy” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed C-5M Super Galaxy by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/C5M/), CC BY 4.0Specifications
- Length
- 75.31 m247.1 ft
- Wingspan
- 67.89 m222.7 ft
- Max take-off weight
- 381 t840,000 lb
- Cruise speed
- 833 km/h518 mph
- Max speed
- 856 km/h532 mph
- Range
- 8,900 km5,530 mi
- Ceiling
- 10,600 m34,800 ft
- Engines
- 4× GE F138
- Power
- 4× 227 kN
- First flight
- 1968
- In service
- 2014
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
