Lockheed SR-71 Blackbird
Historic type, drawn for the library · Military

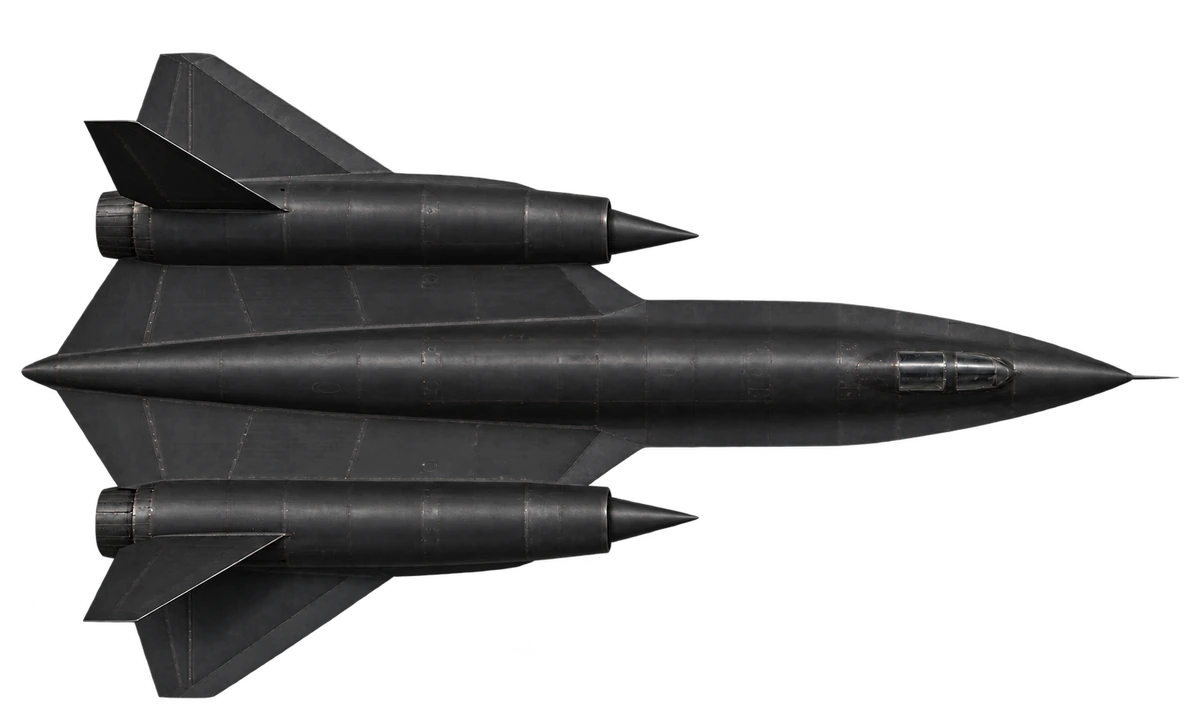

Explore the Lockheed SR-71 Blackbird in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed SR-71 "Blackbird" is a retired long-range, high-altitude, Mach 3+ strategic reconnaissance aircraft that was developed and manufactured by the American aerospace company Lockheed Corporation. Its nicknames include "Blackbird" and "Habu".
Summary of “Lockheed SR-71 Blackbird” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed SR-71 Blackbird by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/SR71/), CC BY 4.0Specifications
- Length
- 32.74 m107.4 ft
- Wingspan
- 16.94 m55.6 ft
- Max take-off weight
- 78 t172,000 lb
- Cruise speed
- 3,400 km/h2,113 mph
- Max speed
- 3,540 km/h2,200 mph
- Range
- 5,400 km3,355 mi
- Ceiling
- 25,900 m85,000 ft
- Engines
- 2× Pratt & Whitney J58
- Power
- 151 kN each (w/ afterburner)
- First flight
- 1964
- In service
- 1966
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
