Sukhoi Su-24MK

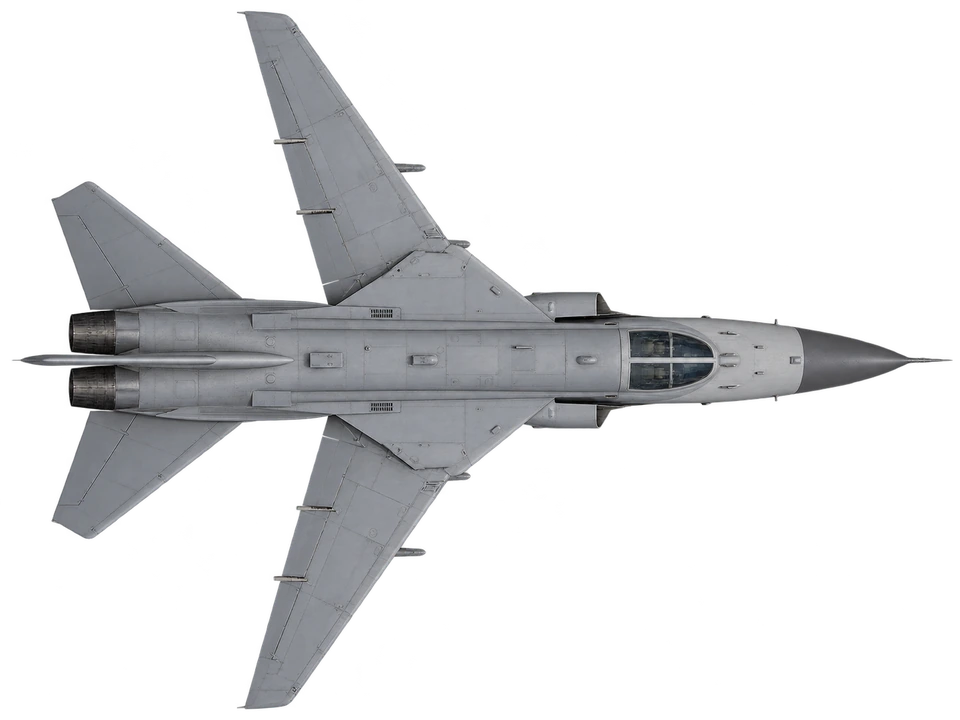

Explore the Sukhoi Su-24MK in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Sukhoi Su-24 is a supersonic, all-weather tactical bomber developed in the Soviet Union. The aircraft has a variable-sweep wing, twin engines and a side-by-side seating arrangement for its crew of two. It was the first of the USSR's aircraft to carry an integrated digital navigation/attack system.
Summary of “Sukhoi Su-24” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Sukhoi Su-24MK by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/SU24/), CC BY 4.0Specifications
- Length
- 22.53 m73.9 ft
- Wingspan
- 17.64 m57.9 ft
- Max take-off weight
- 43.76 t96,500 lb
- Max speed
- 1,654 km/h1,028 mph
- Range
- 2,775 km1,724 mi
- Ceiling
- 11,000 m36,100 ft
- Engines
- 2 × Lyulka AL-21F-3A turbojet engines
- Power
- 75 kN (17,000 lbf) thrust each dry, 109.8 kN (24,700 lbf) with afterburner
- First flight
- 1967
- In service
- 1974
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
