Sukhoi Su-27SK

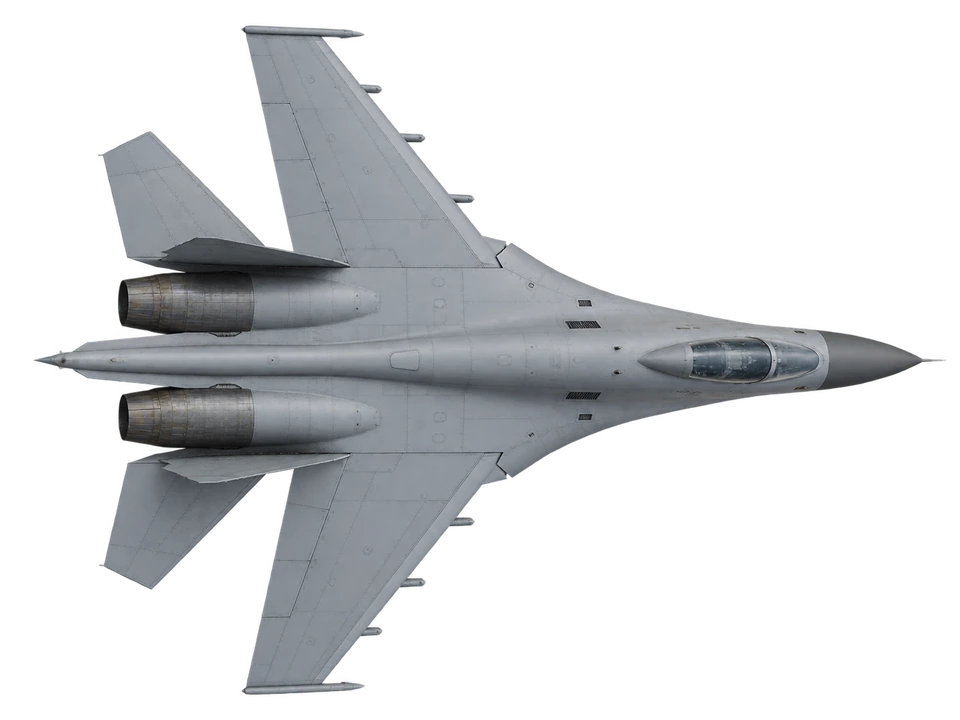

Explore the Sukhoi Su-27SK in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Sukhoi Su-27 is a Soviet twin-engine supersonic supermaneuverable fighter aircraft designed by Sukhoi. It was intended as a direct competitor for the large US fourth-generation jet fighters such as the Grumman F-14 Tomcat and McDonnell Douglas F-15 Eagle, with 3,530-kilometre (1,910 nmi) range, heavy aircraft ordnance, sophisticated avionics and high maneuverability. The Su-27 was designed for air superiority missions, and subsequent variants are able to perform almost all aerial warfare operations. It was designed with the Mikoyan MiG-29 as its complement.
Summary of “Sukhoi Su-27” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Sukhoi Su-27SK by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/SU27/), CC BY 4.0Specifications
- Length
- 21.9 m71.9 ft
- Wingspan
- 14.7 m48.2 ft
- Max take-off weight
- 33 t72,800 lb
- Max speed
- 2,500 km/h1,553 mph
- Range
- 3,530 km2,193 mi
- Ceiling
- 18,500 m60,700 ft
- Engines
- 2 × Saturn AL-31F afterburning turbofan engines
- Power
- 75.22 kN (16,910 lbf) thrust each dry, 122.6 kN (27,600 lbf) with afterburner
- First flight
- 1977
- In service
- 1985
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
