Piper PA-23 Apache

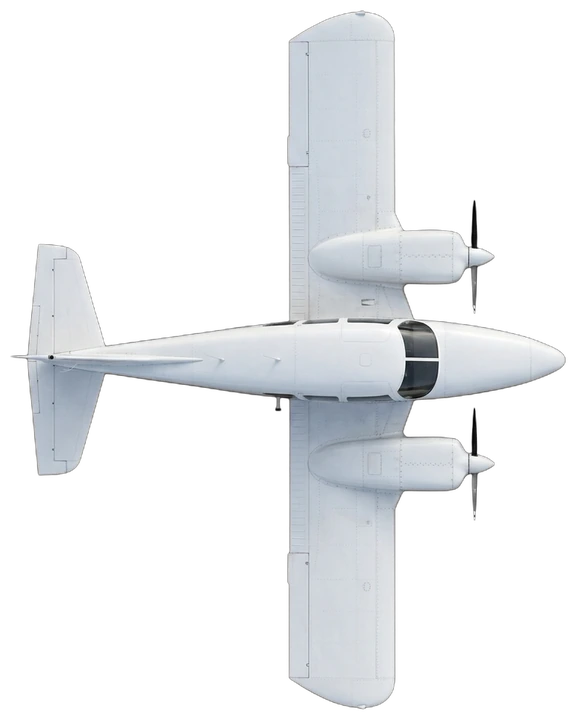

Explore the Piper PA-23 Apache in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Piper PA-23, named Apache and later Aztec, is an American four- to six-seat twin-engined general aviation light aircraft, used also in small numbers by the United States Navy and military forces in other countries. Originally designed as the Twin Stinson in the 1950s by the Stinson Aircraft Company, it was produced as the Apache and a more powerful version, the Aztec, by Piper Aircraft in the United States from the 1950s to the 1980s.
Summary of “Piper PA-23” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Piper PA-23 Apache by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/PA23/), CC BY 4.0Specifications
- Length
- 8.27 m27.1 ft
- Wingspan
- 11.28 m37 ft
- Max take-off weight
- 1.72 t3,800 lb
- Typical seats
- 5
- Cruise speed
- 278 km/h173 mph
- Max speed
- 294 km/h183 mph
- Range
- 1,141 km709 mi
- Ceiling
- 5,182 m17,000 ft
- Engines
- 2× Lycoming O-320-B (piston)
- Power
- 2× 160 hp
- First flight
- 1952
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
