Piper J-3C-65 Cub

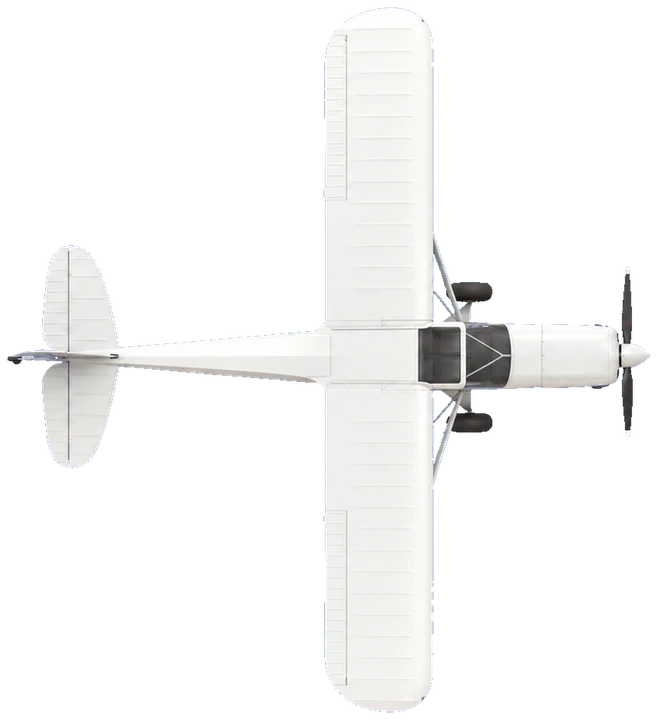

Explore the Piper J-3C-65 Cub in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Piper J-3 Cub is an American light aircraft that was built between 1938 and 1947 by Piper Aircraft. The aircraft has a simple, lightweight design, which gives it good low-speed handling properties and short-field performance. The Cub is Piper Aircraft's second most-produced model after the PA-28 Cherokee series with over 20,000 built in the United States. Its simplicity, affordability and popularity invoke comparisons to the Ford Model T automobile.
Summary of “Piper J-3 Cub” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Piper J-3C-65 Cub by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/J3/), CC BY 4.0Specifications
- Length
- 6.82 m22.4 ft
- Wingspan
- 10.73 m35.2 ft
- Max take-off weight
- 0.55 t1,200 lb
- Cruise speed
- 121 km/h75 mph
- Max speed
- 140 km/h87 mph
- Range
- 354 km220 mi
- Ceiling
- 3,505 m11,500 ft
- Engines
- 1 × Continental A65-8
- Power
- 65 hp
- First flight
- 1938
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
