Chengdu J-20 (WS-10C)

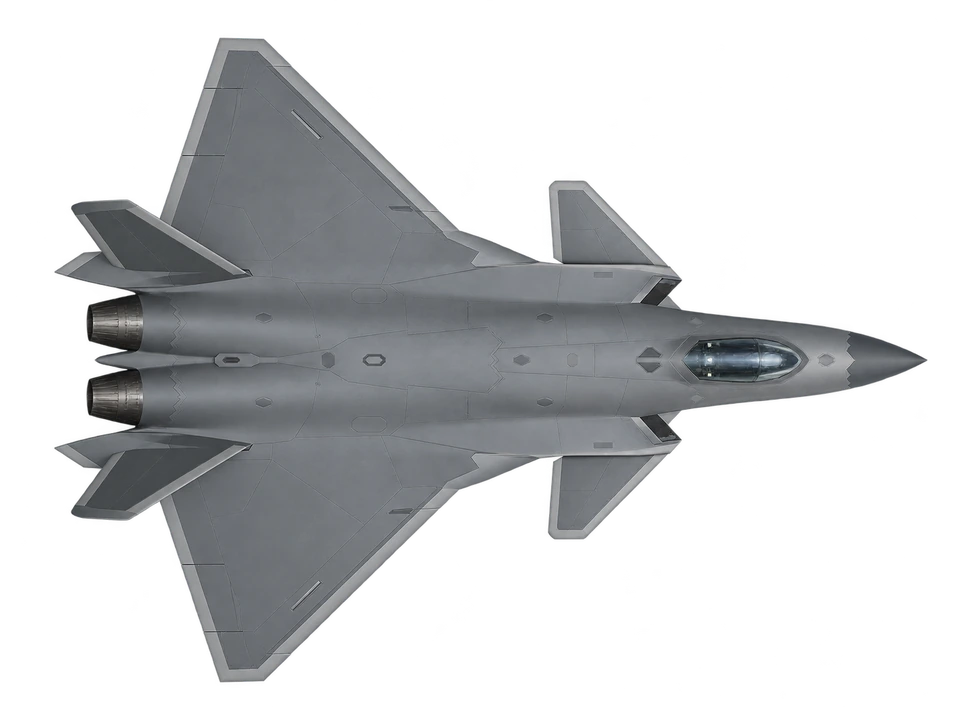

Explore the Chengdu J-20 (WS-10C) in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Chengdu J-20, also known as Weilong, is a twin-engine all-weather stealth fighter developed by China's Chengdu Aircraft Corporation between 2011 and 2018 for the People's Liberation Army Air Force (PLAAF). The J-20 is designed as an air superiority fighter with precision strike capability. The aircraft has three notable variants: the initial production model, the revised airframe variant with new engines and thrust-vectoring control, and the aircraft-teaming capable twin-seat variant.
Summary of “Chengdu J-20” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Chengdu J-20 (WS-10C) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/J20/), CC BY 4.0Specifications
- Length
- 21.2 m69.6 ft
- Wingspan
- 13.01 m42.7 ft
- Max take-off weight
- 37 t81,600 lb
- Max speed
- 2,130 km/h1,324 mph
- Range
- 5,500 km3,418 mi
- Ceiling
- 20,000 m65,600 ft
- Engines
- 2 × Shenyang WS-10C afterburning turbofan
- Power
- 142–147 kN (32,000–33,000 lbf) with afterburner
- First flight
- 2011
- In service
- 2017
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
