Piper PA-28 Cherokee
2 airline colour schemes

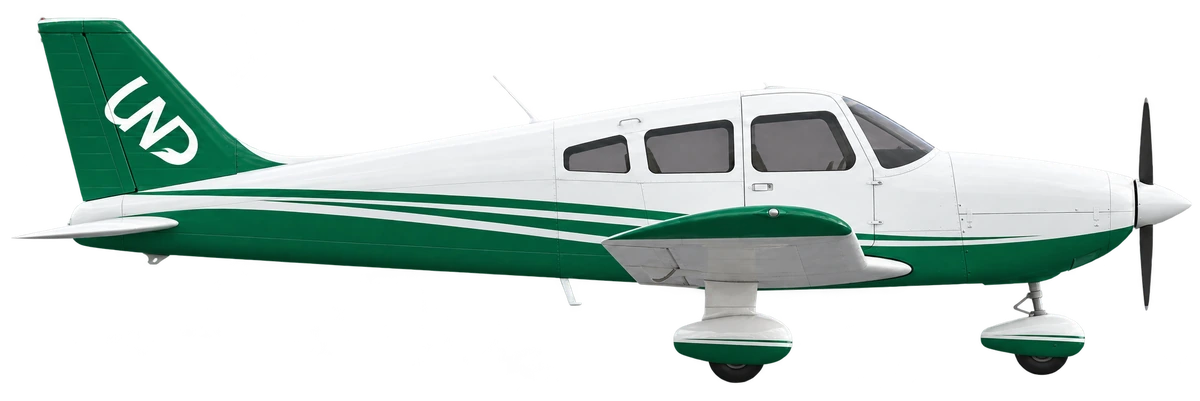

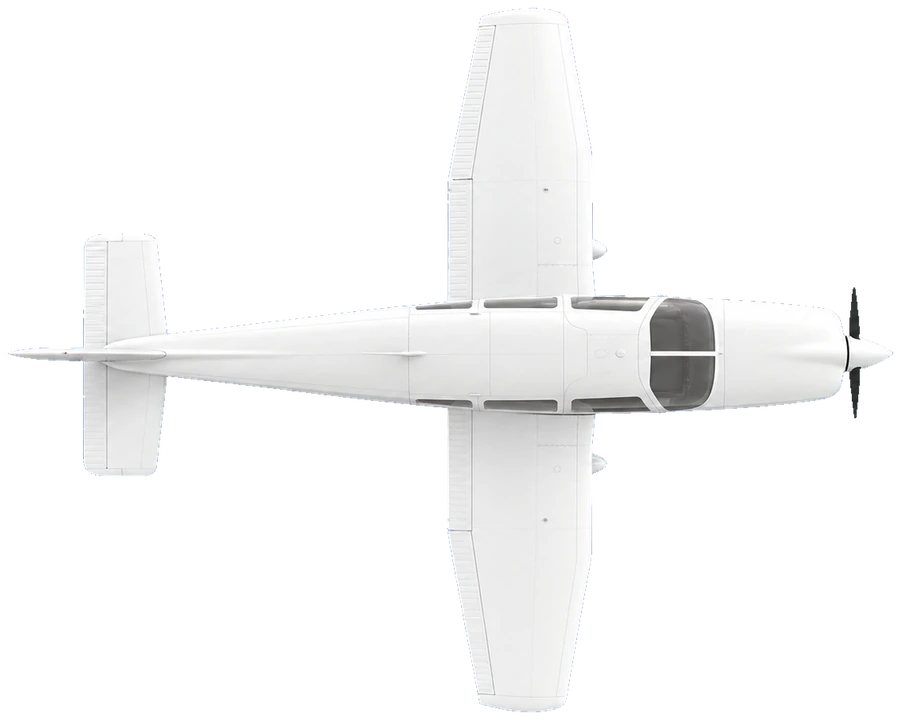

Explore the Piper PA-28 Cherokee in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Piper PA-28 Cherokee is a family of two-seat or four-seat light aircraft built by Piper Aircraft and designed for flight training, air taxi, and personal use. The PA-28 family of aircraft comprises all-metal, unpressurized, single piston-engined airplanes with low mounted wings and tricycle landing gear. They have a single door on the right side, which is entered by stepping on the wing.
Summary of “Piper PA-28 Cherokee” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Piper PA-28 Cherokee by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/P28A/), CC BY 4.0Specifications
- Length
- 7.01 m23 ft
- Wingspan
- 9.14 m30 ft
- Max take-off weight
- 0.97 t2,100 lb
- Cruise speed
- 200 km/h124 mph
- Max speed
- 228 km/h142 mph
- Range
- 861 km535 mi
- Ceiling
- 4,359 m14,300 ft
- Engines
- 1× Lycoming O-360 (piston)
- Power
- 150 hp
- First flight
- 1960
- In service
- 1960
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
