Lockheed P-3 Orion

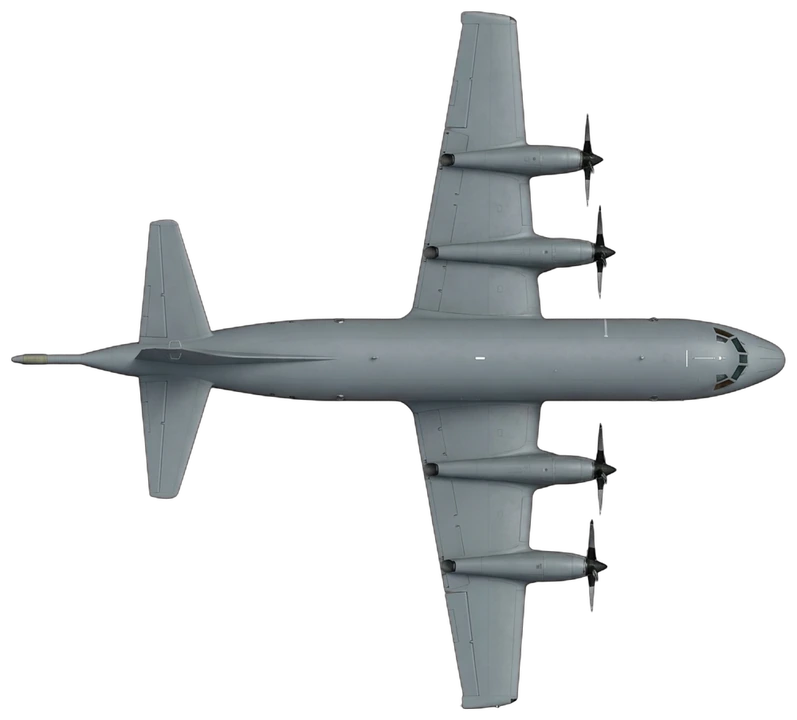

Explore the Lockheed P-3 Orion in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Lockheed P-3 Orion is a four-engined, turboprop anti-submarine and maritime surveillance aircraft developed for the United States Navy and introduced in the 1960s. It is based on the L-188 Electra commercial airliner by Lockheed; it is easily distinguished from the Electra by its distinctive tail stinger or "MAD" boom, used for the magnetic anomaly detection (MAD) of submarines.
Summary of “Lockheed P-3 Orion” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Lockheed P-3 Orion by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/P3/), CC BY 4.0Specifications
- Length
- 35.36 m116 ft
- Wingspan
- 30.18 m99 ft
- Max take-off weight
- 61.2 t134,900 lb
- Cruise speed
- 607 km/h377 mph
- Max speed
- 761 km/h473 mph
- Ceiling
- 8,626 m28,300 ft
- Engines
- 4× Allison T56 (turboprop)
- Power
- 4× 4 909 hp
- First flight
- 1959
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
