BAe / McDonnell Douglas Harrier II
Historic type, drawn for the library · Military

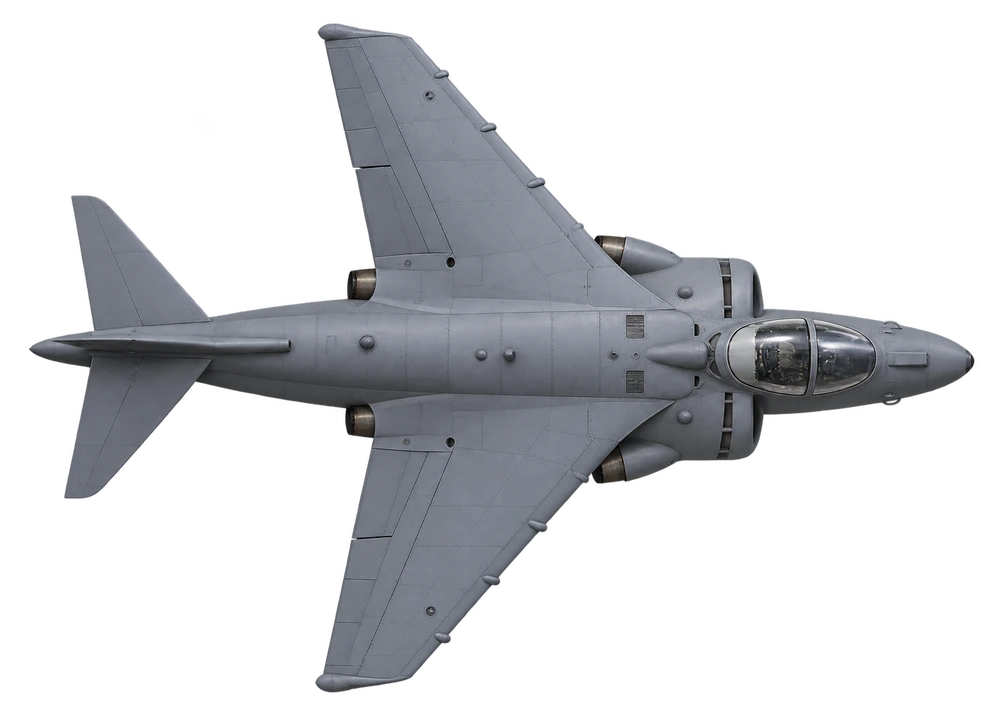

Explore the BAe / McDonnell Douglas Harrier II in side view and top view to compare its silhouette and proportions.
From Wikipedia
The McDonnell Douglas AV-8B Harrier II is a single-engine ground-attack aircraft that constitutes the second generation of the Harrier family, capable of vertical or short takeoff and landing (V/STOL). The aircraft is primarily employed on light attack or multi-role missions, ranging from close air support of ground troops to armed reconnaissance. The AV-8B has served with the United States Marine Corps (USMC), the Spanish Navy, and the Italian Navy. A variant of the AV-8B, the British Aerospace Harrier II, was developed for the British armed forces, while another, the TAV-8B, is a dedicated two-seat trainer.
Summary of “McDonnell Douglas AV-8B Harrier II” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the BAe / McDonnell Douglas Harrier II by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/HAR/), CC BY 4.0Specifications
- Length
- 14.12 m46.3 ft
- Wingspan
- 9.25 m30.3 ft
- Max take-off weight
- 14.1 t31,100 lb
- Max speed
- 1,083 km/h673 mph
- Range
- 2,200 km1,367 mi
- Ceiling
- 11,600 m38,100 ft
- Engines
- 1× Rolls-Royce Pegasus F402-RR-408
- Power
- 105 kN
- First flight
- 1978
- In service
- 1985
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
