Boeing AH-64 Apache
0 airline colour schemes · Military

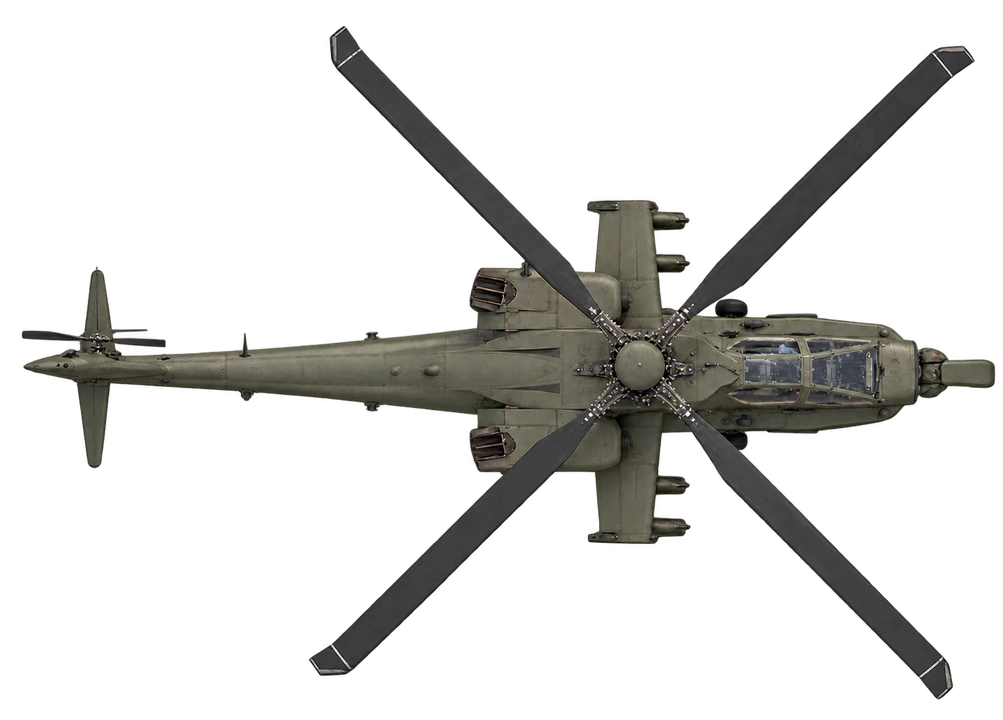

Explore the Boeing AH-64 Apache in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Hughes/McDonnell Douglas/Boeing AH-64 Apache is an American twin-turboshaft attack helicopter with a tailwheel-type landing gear and a tandem cockpit for a crew of two. Nose-mounted sensors help acquire targets and provide night vision. It carries a 30 mm (1.18 in) M230 chain gun under its forward fuselage and four hardpoints on stub-wing pylons for armament and stores, typically AGM-114 Hellfire missiles and Hydra 70 rocket pods. Redundant systems help it survive combat damage.
Summary of “Boeing AH-64 Apache” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Boeing AH-64 Apache by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/H64/), CC BY 4.0Specifications
- Length
- 17.73 m58.2 ft
- Rotor diameter
- 14.63 m48 ft
- Max take-off weight
- 10.43 t23,000 lb
- Cruise speed
- 265 km/h165 mph
- Max speed
- 293 km/h182 mph
- Range
- 476 km296 mi
- Ceiling
- 6,096 m20,000 ft
- Engines
- 2× GE T700 (turboshaft)
- Power
- 2× 1 690 hp
- First flight
- 1975
- In service
- 1986
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
