Bell Boeing V-22 Osprey

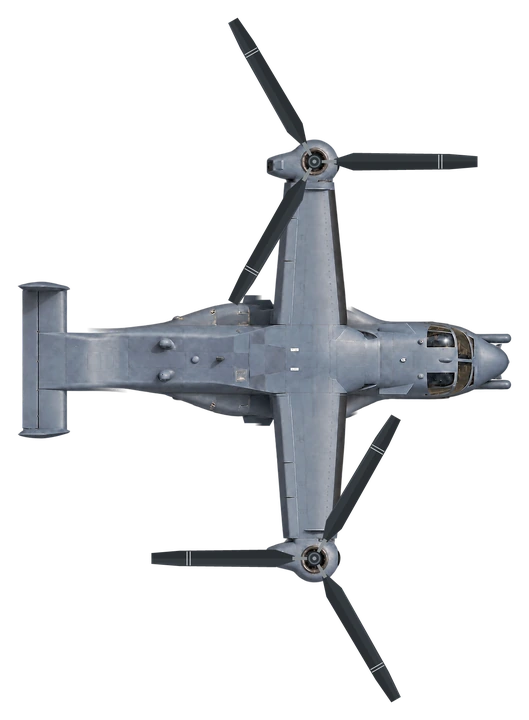

Explore the Bell Boeing V-22 Osprey in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Bell Boeing V-22 Osprey is an American multi-use, tiltrotor military transport and cargo aircraft with both vertical takeoff and landing (VTOL) and short takeoff and landing (STOL) capabilities. As the first production aircraft of its type, it is designed to combine the functionality of a conventional helicopter with the long-range, high-speed cruise performance of a turboprop aircraft, and is operated by the United States and Japan. It first flew in 1989, and after a long development was fielded in 2007.
Summary of “Bell–Boeing V-22 Osprey” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Bell Boeing V-22 Osprey by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/V22/), CC BY 4.0Specifications
- Length
- 17.48 m57.3 ft
- Wingspan
- 13.97 m45.8 ft
- Rotor diameter
- 11.6 m38.1 ft
- Max take-off weight
- 27.4 t60,400 lb
- Cruise speed
- 446 km/h277 mph
- Max speed
- 565 km/h351 mph
- Range
- 1,627 km1,011 mi
- Ceiling
- 7,620 m25,000 ft
- Engines
- 2× Rolls-Royce AE 1107C (turboshaft)
- Power
- 2× 6 150 hp
- First flight
- 1989
- In service
- 2007
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
