SOCATA TB20 Trinidad (pre-GT, January 2000)

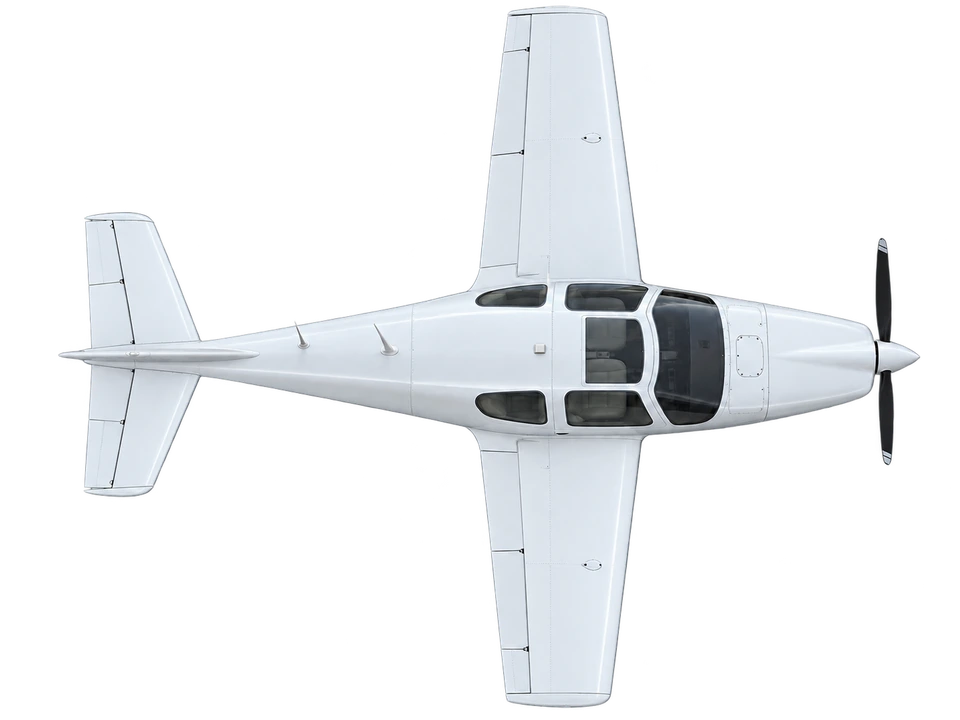

Explore the SOCATA TB20 Trinidad (pre-GT, January 2000) in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Socata TB is a series of light single-engine piston aircraft developed and manufactured by French aircraft company SOCATA. The letters TB within the designation stand for Tarbes, the French city where the aircraft series is manufactured. The TB series planes have come to be known as the "Caribbean Planes" due to the island naming convention adopted for the various models, though they are not often seen flown in that region.
Summary of “SOCATA TB family” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the SOCATA TB20 Trinidad (pre-GT, January 2000) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/TB20/), CC BY 4.0Specifications
- Length
- 7.7 m25.3 ft
- Wingspan
- 9.77 m32.1 ft
- Max take-off weight
- 1.4 t3,100 lb
- Cruise speed
- 291 km/h181 mph
- Max speed
- 302 km/h188 mph
- Range
- 2,052 km1,275 mi
- Ceiling
- 6,096 m20,000 ft
- Engines
- 1 × Lycoming IO-540-C4D5D
- Power
- 250 bhp
- First flight
- 1980
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
