Tupolev Tu-22M3

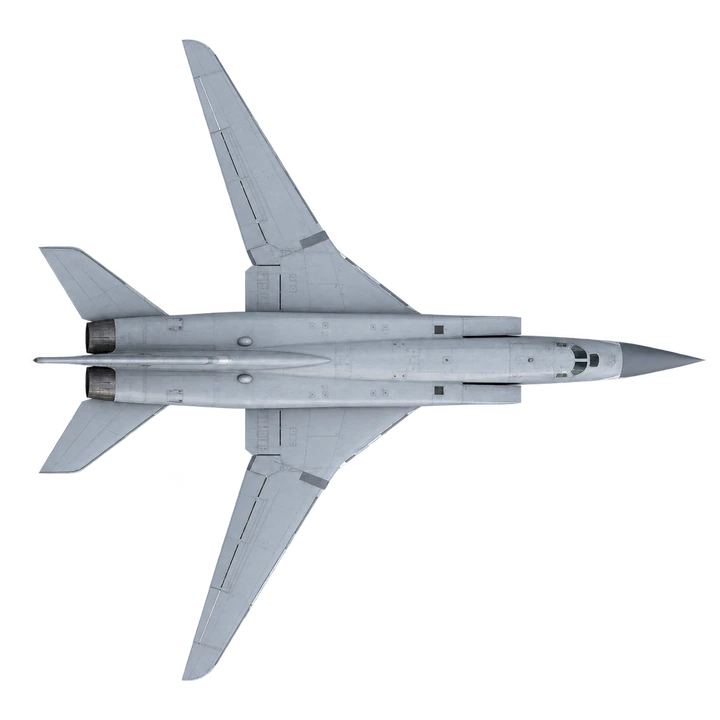

Explore the Tupolev Tu-22M3 in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Tupolev Tu-22M is a Soviet nuclear capable, supersonic, variable-sweep wing, long-range strategic and maritime strike bomber developed by the Tupolev Design Bureau in the 1960s. The bomber was reported as being designated Tu-26 by Western intelligence at one time. During the Cold War, the Tu-22M was operated by the Soviet Air Forces (VVS) in a missile carrier strategic bombing role, and by the Soviet Naval Aviation in a long-range maritime anti-shipping role.
Summary of “Tupolev Tu-22M” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Tupolev Tu-22M3 by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/T22M/), CC BY 4.0Specifications
- Length
- 42.46 m139.3 ft
- Wingspan
- 34.28 m112.5 ft
- Max take-off weight
- 126 t277,800 lb
- Max speed
- 1,997 km/h1,241 mph
- Range
- 6,800 km4,225 mi
- Ceiling
- 13,300 m43,600 ft
- Engines
- 2 × Kuznetsov NK-25 Afterburning turbofan engines
- Power
- 247.9 kN (55,700 lbf) with afterburner
- First flight
- 1969
- In service
- 1972
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
