Dassault Rafale

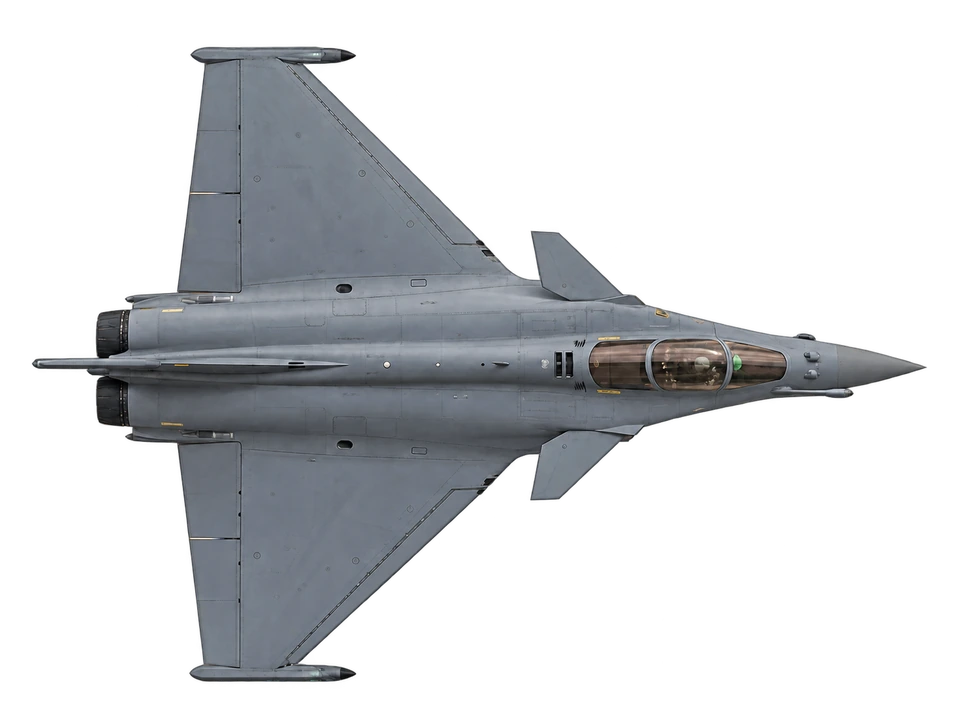

Explore the Dassault Rafale in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Dassault Rafale is a French twin-engine, canard delta wing, multirole fighter aircraft designed and built by Dassault Aviation. Equipped with a wide range of weapons, the Rafale is intended to perform air supremacy, interdiction, aerial reconnaissance, ground support, in-depth strike, anti-ship strike and nuclear deterrence missions. Dassault markets the aircraft as an "omnirole" fighter due to its ability to perform multiple distinct mission roles during a single sortie.
Summary of “Dassault Rafale” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Dassault Rafale by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/RFAL/), CC BY 4.0Specifications
- Length
- 15.27 m50.1 ft
- Wingspan
- 10.9 m35.8 ft
- Max take-off weight
- 24.5 t54,000 lb
- Max speed
- 1,912 km/h1,188 mph
- Range
- 3,700 km2,299 mi
- Ceiling
- 15,240 m50,000 ft
- Engines
- 2× Snecma M88-2 (afterburning turbofan)
- Power
- 2× 50 kN (dry)
- First flight
- 1986
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
