Robinson R22 (original production model)

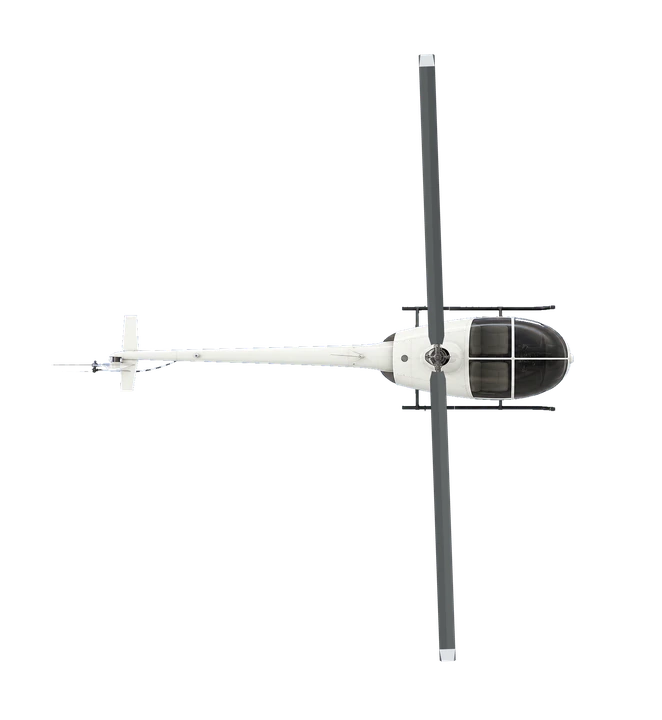

Explore the Robinson R22 (original production model) in side view and top view to compare its silhouette and proportions.
8.74 m28.7 ft
From Wikipedia
The Robinson R22 is a two-seat, two-bladed, single-engined, light utility helicopter manufactured by Robinson Helicopter Company. It was designed in 1973 by Frank D. Robinson, and has been in production since 1979.
Summary of “Robinson R22” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Robinson R22 (original production model) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/R22/), CC BY 4.0Specifications
- Length
- 8.74 m28.7 ft
- Rotor diameter
- 7.67 m25.2 ft
- Max take-off weight
- 0.62 t1,400 lb
- Cruise speed
- 178 km/h111 mph
- Range
- 387 km240 mi
- Ceiling
- 4,267 m14,000 ft
- Engines
- 1 × Lycoming O-320-A2B or -A2C 4-cylinder air-cooled horizontally-opposed piston engine
- Power
- 124 hp (92 kW)
- First flight
- 1975
- In service
- 1979
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
