Dassault Mirage F1

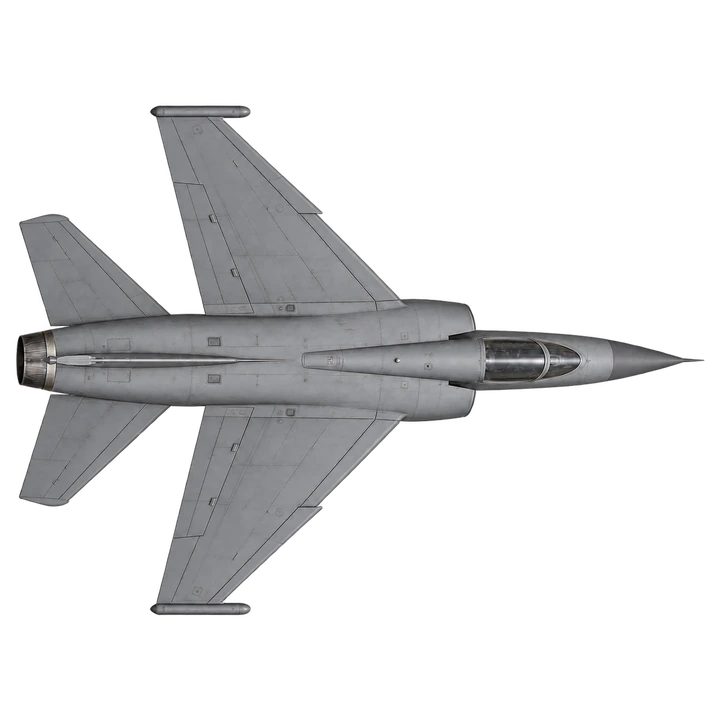

Explore the Dassault Mirage F1 in side view and top view to compare its silhouette and proportions.
15.3 m50.2 ft
8.4 m27.6 ft
From Wikipedia
The Dassault Mirage F1 is a French fighter and attack aircraft designed and manufactured by Dassault Aviation. It was developed as a successor to the Mirage III family.
Summary of “Dassault Mirage F1” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Dassault Mirage F1 by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/MRF1/), CC BY 4.0Specifications
- Length
- 15.3 m50.2 ft
- Wingspan
- 8.4 m27.6 ft
- Max take-off weight
- 16.2 t35,700 lb
- Max speed
- 2,338 km/h1,453 mph
- Range
- 3,300 km2,051 mi
- Ceiling
- 20,000 m65,600 ft
- Engines
- 1 × SNECMA Atar 9K-50 afterburning turbojet engine
- Power
- 49.03 kN (11,020 lbf) thrust dry, 70.6 kN (15,900 lbf) with afterburner
- First flight
- 1966
- In service
- 1973
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
