Messerschmitt Bf 109
Historic type, drawn for the library · Military

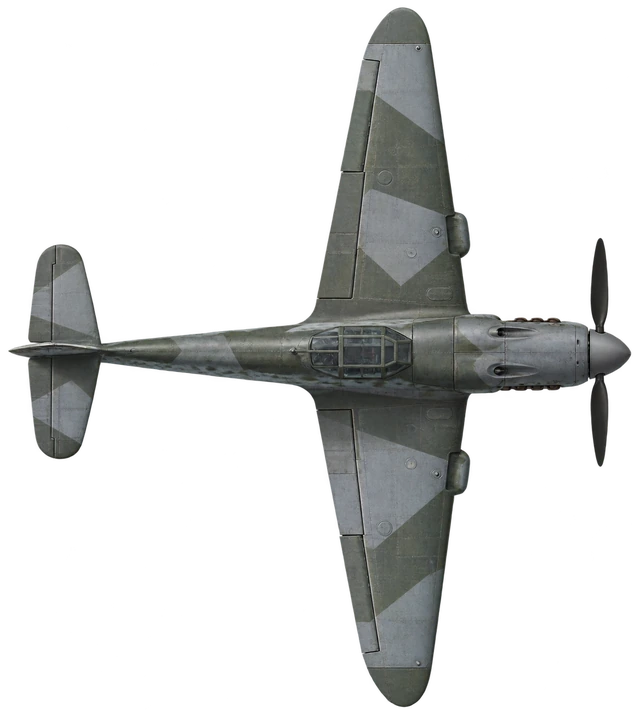

Explore the Messerschmitt Bf 109 in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Messerschmitt Bf 109 is a monoplane fighter aircraft that was designed and initially produced by the German aircraft manufacturer Bayerische Flugzeugwerke (BFW). Together with the Focke-Wulf Fw 190, the Bf 109 formed the backbone of the Luftwaffe's fighter force during the Second World War. It was commonly called the Me 109 by Allied aircrew and some German aces/pilots, even though this was not the official model designation.
Summary of “Messerschmitt Bf 109” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Messerschmitt Bf 109 by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/ME09/), CC BY 4.0Specifications
- Length
- 9.02 m29.6 ft
- Wingspan
- 9.92 m32.5 ft
- Max take-off weight
- 3.4 t7,500 lb
- Max speed
- 640 km/h398 mph
- Range
- 880 km547 mi
- Ceiling
- 12,000 m39,400 ft
- Engines
- 1× Daimler-Benz DB 605A
- Power
- 1,475 PS
- First flight
- 1935
- In service
- 1937
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
