Mooney M20J 201 (1984 production)

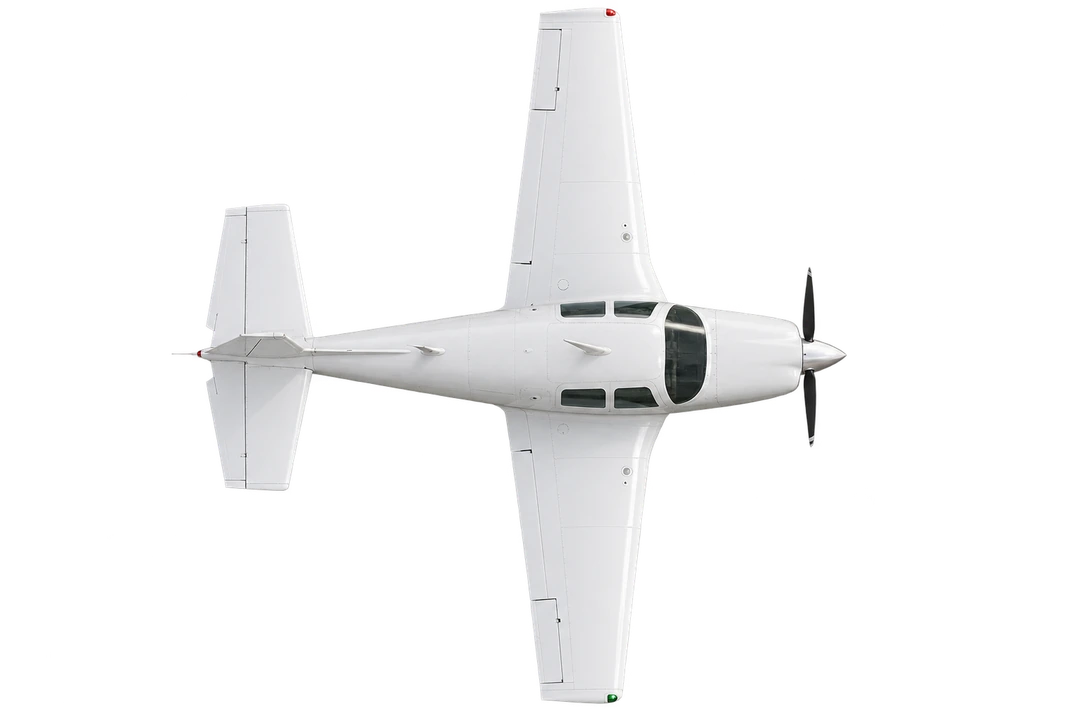

Explore the Mooney M20J 201 (1984 production) in side view and top view to compare its silhouette and proportions.
7.52 m24.7 ft
11 m36.1 ft
From Wikipedia
The Mooney M20 is a family of piston-powered, four-seat, propeller-driven, general aviation aircraft, all featuring low wings and tricycle gear, manufactured by the Mooney International Corporation.
Summary of “Mooney M20” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Mooney M20J 201 (1984 production) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/M20P/), CC BY 4.0Specifications
- Length
- 7.52 m24.7 ft
- Wingspan
- 11 m36.1 ft
- Max take-off weight
- 1.24 t2,700 lb
- Cruise speed
- 314 km/h195 mph
- Max speed
- 323 km/h201 mph
- Range
- 1,963 km1,220 mi
- Ceiling
- 5,730 m18,800 ft
- Engines
- 1 × Lycoming IO-360-A3B6D
- Power
- 200 hp
- First flight
- 1953
- In service
- 1955
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
