Boeing CH-47F Chinook
0 airline colour schemes · Military

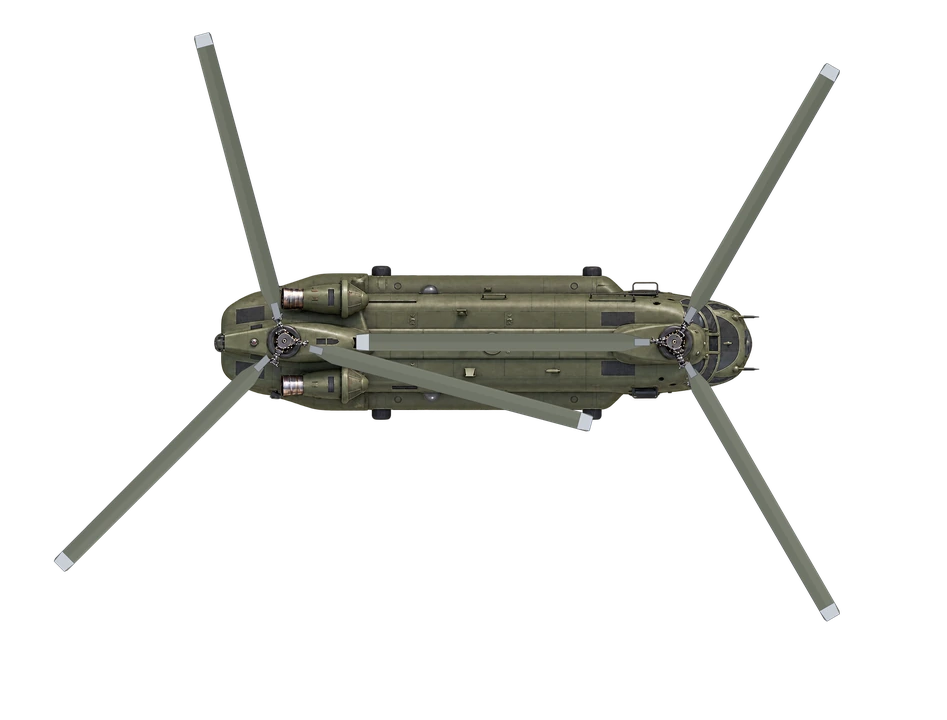

Explore the Boeing CH-47F Chinook in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Boeing CH-47 Chinook is a tandem-rotor helicopter originally developed by American rotorcraft company Vertol and now manufactured by Boeing Defense, Space & Security. The Chinook is the second-heaviest-lifting Western heavy-lift helicopter, behind the Sikorsky CH-53. Its name comes from the Chinook people, who are indigenous to the Pacific Northwest of the United States.
Summary of “Boeing CH-47 Chinook” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Boeing CH-47F Chinook by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/H47/), CC BY 4.0Specifications
- Length
- 30.14 m98.9 ft
- Rotor diameter
- 18.29 m60 ft
- Max take-off weight
- 22.68 t50,000 lb
- Cruise speed
- 291 km/h181 mph
- Max speed
- 315 km/h196 mph
- Range
- 741 km460 mi
- Ceiling
- 6,100 m20,000 ft
- Engines
- 2× Honeywell T55 (turboshaft)
- Power
- 2× 4 733 hp
- First flight
- 1961
- In service
- 2007
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
