McDonnell Douglas F-15 Eagle

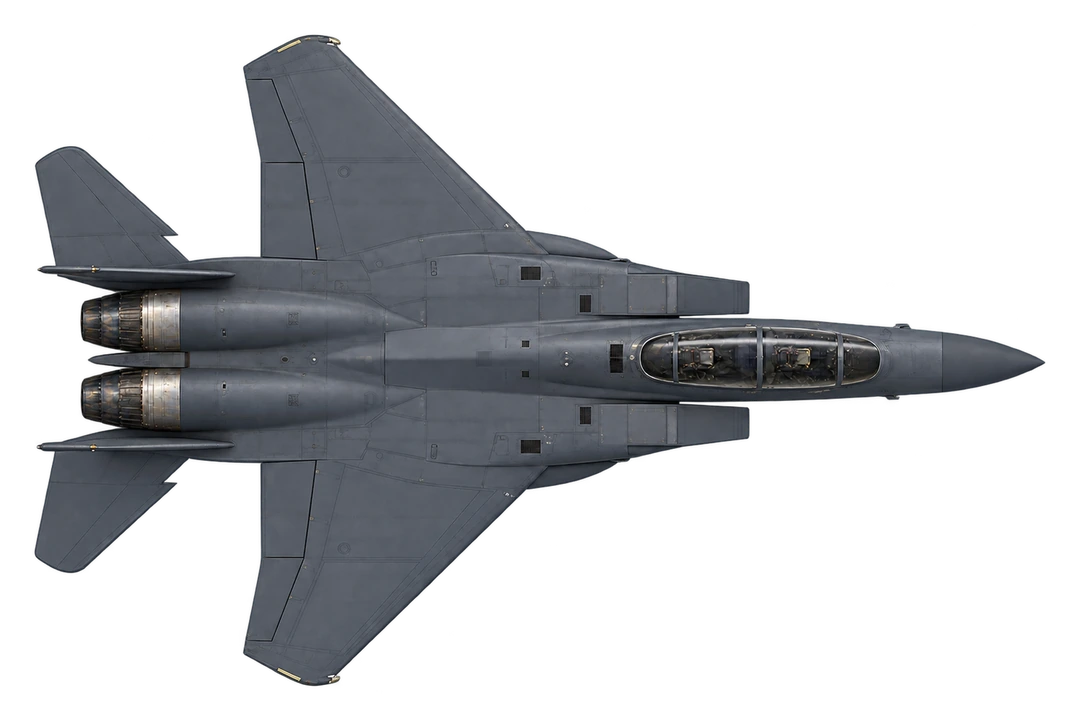

Explore the McDonnell Douglas F-15 Eagle in side view and top view to compare its silhouette and proportions.
From Wikipedia
The McDonnell Douglas F-15 Eagle is an American twin-engine, all-weather fighter aircraft designed by McDonnell Douglas. Following reviews of proposals, the United States Air Force (USAF) selected McDonnell Douglas's design in 1969 to meet the service's need for a dedicated air superiority fighter. The Eagle took its maiden flight in July 1972, and entered service in 1976. It is among the most successful modern fighters, with over 104 victories and no losses in air-to-air combat.
Summary of “McDonnell Douglas F-15 Eagle” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the McDonnell Douglas F-15 Eagle by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/F15/), CC BY 4.0Specifications
- Length
- 19.2 m63 ft
- Wingspan
- 12.8 m42 ft
- Max take-off weight
- 30.8 t67,900 lb
- Cruise speed
- 919 km/h571 mph
- Max speed
- 2,655 km/h1,650 mph
- Range
- 3,971 km2,467 mi
- Ceiling
- 19,812 m65,000 ft
- Engines
- 2× P&W F100 (afterburning turbofan)
- Power
- 2× 65 kN (dry)
- First flight
- 1972
- In service
- 1976
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
