Boeing E-767

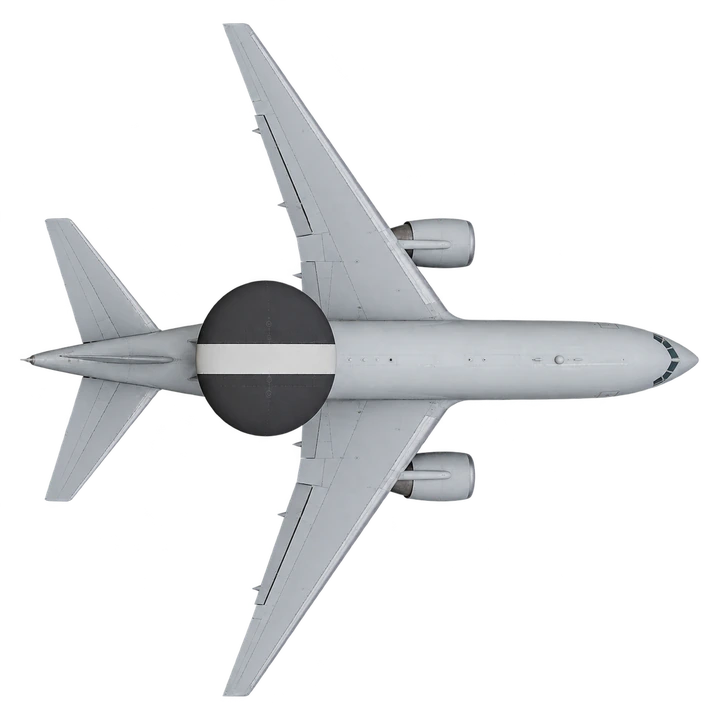

Explore the Boeing E-767 in side view and top view to compare its silhouette and proportions.
48.51 m159.2 ft
47.57 m156.1 ft
From Wikipedia
The Boeing E-767 is an Airborne Warning and Control System (AWACS) aircraft that was designed in response to the Japan Air Self-Defense Force's requirements. It is essentially the Boeing E-3 Sentry's surveillance radar and air control system installed on a Boeing 767-200.
Summary of “Boeing E-767” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Boeing E-767 by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/E767/), CC BY 4.0Specifications
- Length
- 48.51 m159.2 ft
- Wingspan
- 47.57 m156.1 ft
- Max take-off weight
- 174.63 t385,000 lb
- Max speed
- 833 km/h518 mph
- Range
- 10,371 km6,444 mi
- Ceiling
- 12,222 m40,100 ft
- Engines
- 2 × General Electric CF6-80C2 turbofan
- Power
- 61,500 lbf (274 kN) thrust each
- First flight
- 1994
- In service
- 2000
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
