American Airlines Embraer E175 STD (short wing)

In American Airlines colours · United States

Explore the Embraer E175 STD (short wing) in American Airlines livery in side view and top view to compare its silhouette and proportions.

Embraer E175 STD (short wing) in American Airlines livery, side profile
Embraer E175 STD (short wing) in American Airlines livery, side profile
31.67 m

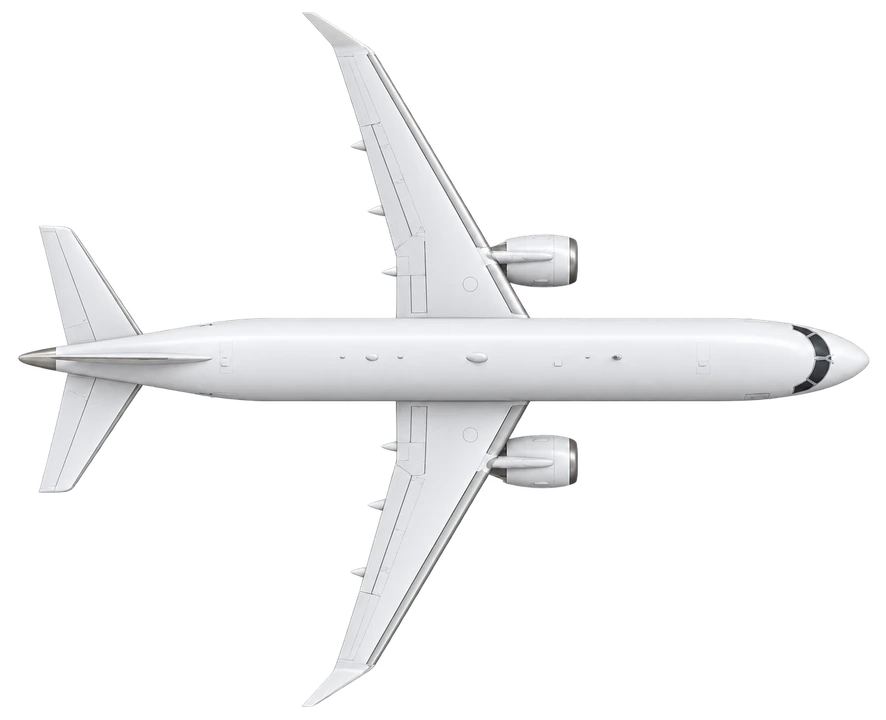

Embraer E175 STD (short wing) in American Airlines livery, top view, same scale
Embraer E175 STD (short wing) in American Airlines livery, top view
26.01 m

From Wikipedia

The Embraer E-Jet family is a series of four-abreast, narrow-body, short- to medium-range, twin-engined regional jet airliners designed and produced by Brazilian aerospace manufacturer Embraer.

Read on Wikipedia

Summary of “Embraer E-Jet family” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.

Download

Free to use, with credit

Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:

Drawing of the Embraer E175 STD (short wing) in American Airlines colours by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/E75S/AAL/), CC BY 4.0

Airline names and colour schemes are trademarks of their owners; the licence covers our drawing, not their marks.

Specifications

Length
31.67 m
Wingspan
26.01 m
Max take-off weight
40.37 t
Cruise speed
797 km/h
Max speed
871 km/h
Range
4,074 km
Ceiling
12,497 m
Engines
2 × General Electric CF34-8E
Power
2 × 63 kN
First flight
2002
In service
2004

From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
