Boeing E-3 Sentry

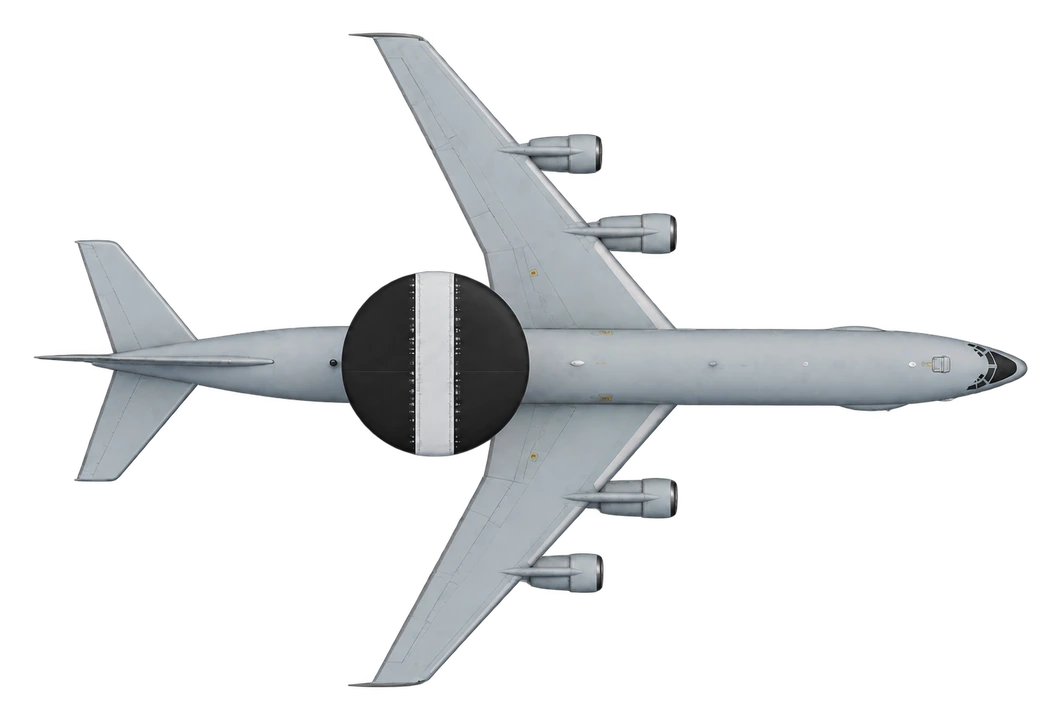

Explore the Boeing E-3 Sentry in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Boeing E-3 Sentry is an American airborne early warning and control (AEW&C) aircraft developed by Boeing. E-3s are commonly known as AWACS. Derived from the Boeing 707 airliner, it provides all-weather surveillance, command, control, and communications, and is used by the United States Air Force, NATO, French Air and Space Force, Royal Saudi Air Force and Chilean Air Force. The E-3 has a distinctive rotating radar dome (rotodome) above the fuselage. Production ended in 1992 after 68 aircraft had been built.
Summary of “Boeing E-3 Sentry” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Boeing E-3 Sentry by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/E3TF/), CC BY 4.0Specifications
- Length
- 46.33 m152 ft
- Wingspan
- 44.2 m145 ft
- Max take-off weight
- 157.4 t347,000 lb
- Cruise speed
- 579 km/h360 mph
- Max speed
- 854 km/h531 mph
- Range
- 7,408 km4,603 mi
- Ceiling
- 8,839 m29,000 ft
- Engines
- 4× P&W TF33 (turbofan)
- Power
- 4× 96 kN
- First flight
- 1972
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
