Japan Airlines McDonnell Douglas DC-10-30

In Japan Airlines colours · Japan

Explore the McDonnell Douglas DC-10-30 in Japan Airlines livery in side view and top view to compare its silhouette and proportions.

McDonnell Douglas DC-10-30 in Japan Airlines livery, side profile
McDonnell Douglas DC-10-30 in Japan Airlines livery, side profile
55.5 m

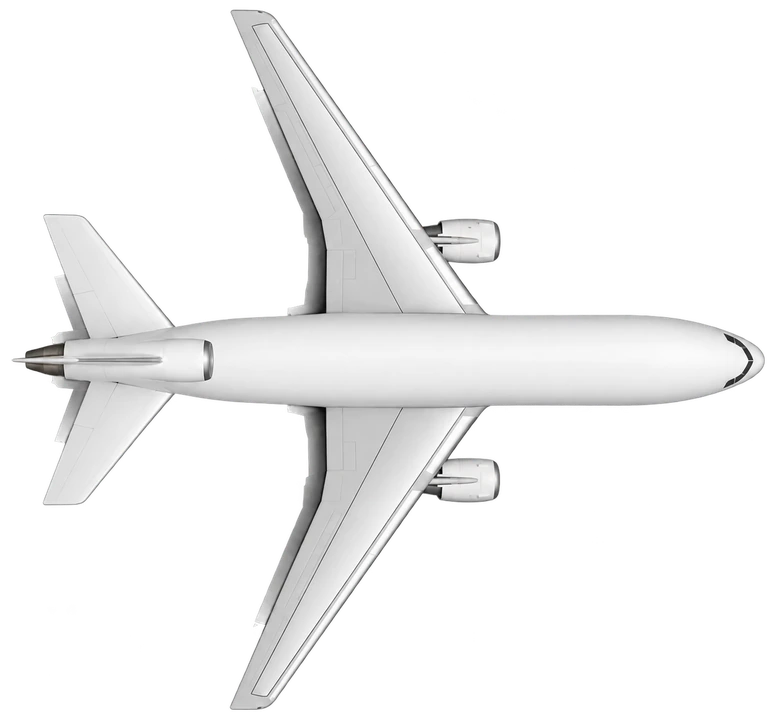

McDonnell Douglas DC-10-30 in Japan Airlines livery, top view
McDonnell Douglas DC-10-30 in Japan Airlines livery, top view
50.4 m

From Wikipedia

The McDonnell Douglas DC-10 is an American trijet wide-body aircraft manufactured by McDonnell Douglas. The DC-10 was intended to succeed the DC-8 for long-range flights. It first flew on August 29, 1970; it was introduced on August 5, 1971, by American Airlines.

Read on Wikipedia

Summary of “McDonnell Douglas DC-10” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.

Download

Free to use, with credit

Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:

Drawing of the McDonnell Douglas DC-10-30 in Japan Airlines colours by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/DC10/JAL/), CC BY 4.0

Airline names and colour schemes are trademarks of their owners; the licence covers our drawing, not their marks.

Specifications

Length
55.5 m
Wingspan
50.4 m
Max take-off weight
263.1 t
Typical seats
270
Cruise speed
876 km/h
Max speed
945 km/h
Range
10,010 km
Ceiling
12,800 m
Engines
3× GE CF6-50C
Power
3× 233 kN
First flight
1970
In service
1971

From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
