Cathay Pacific Boeing 747-8

In Cathay Pacific colours · Hong Kong

Explore the Boeing 747-8 in Cathay Pacific livery in side view and top view to compare its silhouette and proportions.

Boeing 747-8 in Cathay Pacific livery, side profile
Boeing 747-8 in Cathay Pacific livery, side profile
76.3 m

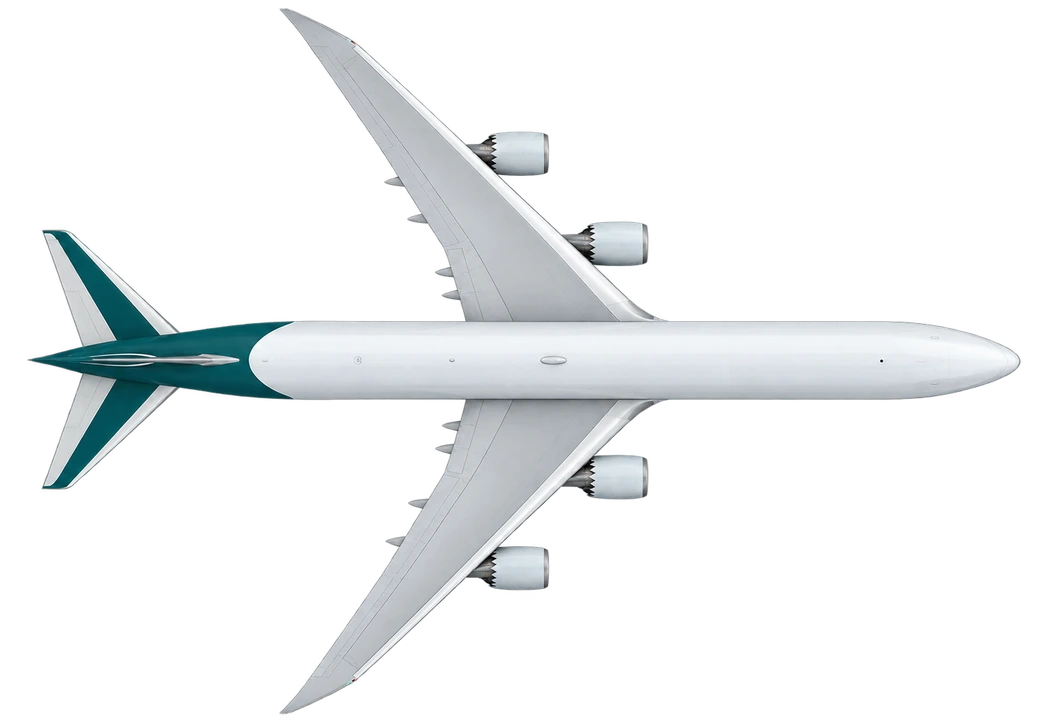

Boeing 747-8 in Cathay Pacific livery, top view
Boeing 747-8 in Cathay Pacific livery, top view
68.4 m

From Wikipedia

The Boeing 747-8 is the last member of the Boeing 747 family, a series of large, long-range wide-body airliners built by Boeing Commercial Airplanes. It is the largest model of the 747 and Boeing's largest aircraft overall. Following the introduction of the 747-400, Boeing explored larger 747 versions as potential competitors to the proposed double-deck Airbus A3XX, later developed as the Airbus A380. The stretched aircraft, initially called the 747 Advanced, was officially launched as the 747-8 on November 14, 2005, with the designation reflecting its technological ties to the 787 Dreamliner. At the time, Boeing forecast a market of 300 aircraft.

Read on Wikipedia

Summary of “Boeing 747-8” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.

Download

Free to use, with credit

Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:

Drawing of the Boeing 747-8 in Cathay Pacific colours by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/B748/CPA/), CC BY 4.0

Airline names and colour schemes are trademarks of their owners; the licence covers our drawing, not their marks.

Specifications

Length
76.3 m
Wingspan
68.4 m
Max take-off weight
447.7 t
Typical seats
467
Cruise speed
933 km/h
Max speed
988 km/h
Range
14,815 km
Ceiling
13,100 m
Engines
4× GEnx-2B67
Power
4× 296 kN
First flight
2010
In service
2011

From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
