Boeing 747-200
7 airline colour schemes

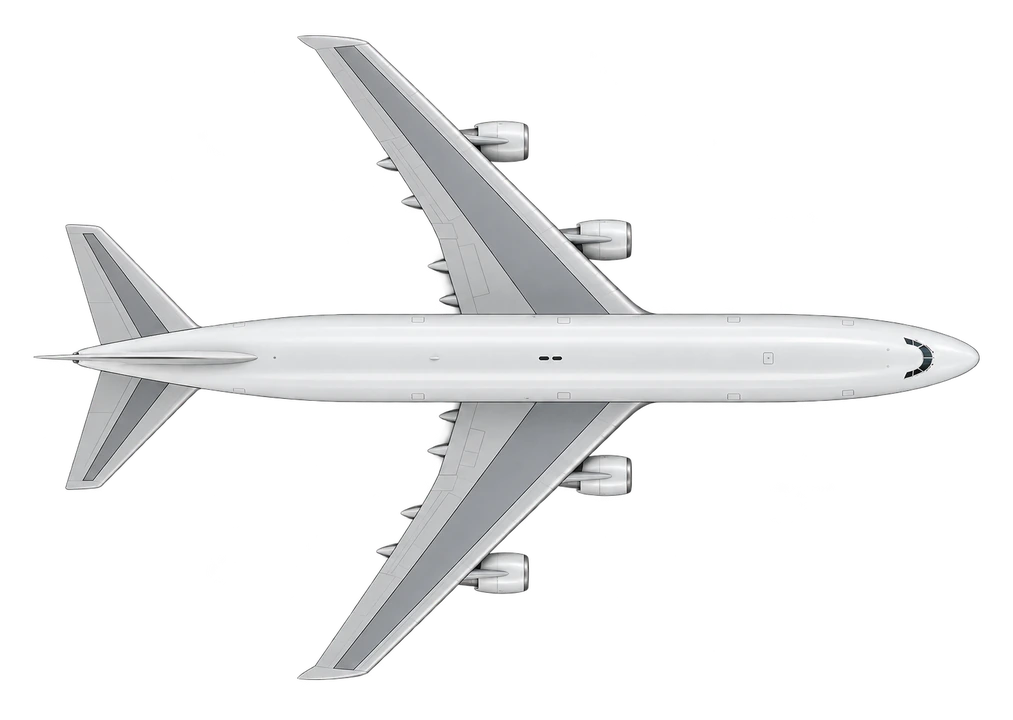

Explore the Boeing 747-200 in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Boeing 747 is a long-range wide-body airliner designed and manufactured by Boeing Commercial Airplanes in the United States between 1968 and 2023. It was conceived in response to the demand of Pan Am for a jet 2+1⁄2 times the size of the 707, which had been introduced in October 1958, to reduce the airline's seat cost by 30%. The design team was led by Joe Sutter, who left the 737 development program in 1965 to design the 747. In April 1966, Pan Am ordered 25 Boeing 747-100 aircraft, and in late 1966, Pratt & Whitney agreed to develop the JT9D engine, a high-bypass turbofan. On September 30, 1968, the first 747 was rolled out of the purpose-built Everett Plant, the world's largest building by volume. The 747's first flight took place on February 9, 1969, and the 747 was certified in December 1969. It entered service with Pan Am on January 22, 1970. The 747 was the first airplane called a "Jumbo Jet" as the first wide-body airliner.
Summary of “Boeing 747” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Boeing 747-200 by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/B742/), CC BY 4.0Specifications
- Length
- 70.7 m232 ft
- Wingspan
- 59.6 m195.5 ft
- Max take-off weight
- 377.8 t832,900 lb
- Typical seats
- 366
- Cruise speed
- 907 km/h564 mph
- Max speed
- 939 km/h583 mph
- Range
- 12,700 km7,891 mi
- Ceiling
- 13,700 m44,900 ft
- Engines
- 4× JT9D / CF6 / RB211
- Power
- 4× 243 kN
- First flight
- 1970
- In service
- 1971
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
