Dassault/Dornier Alpha Jet (close-support version)

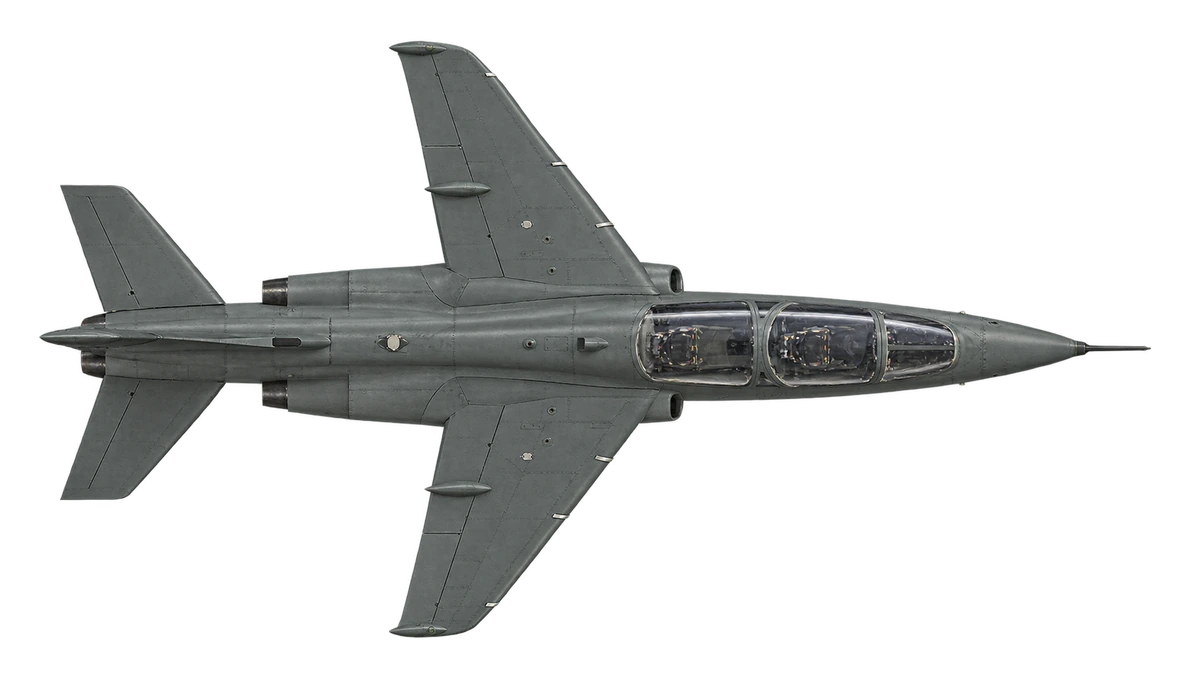

Explore the Dassault/Dornier Alpha Jet (close-support version) in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Dassault/Dornier Alpha Jet is a light attack jet and advanced jet trainer co-manufactured by Dassault Aviation of France and Dornier Flugzeugwerke of Germany. It was developed specifically to perform trainer and light attack missions, as well as to perform these duties better than the first generation of jet trainers that preceded it. Following a competition, a design submitted by a team comprising Breguet Aviation, Dassault Aviation, and Dornier Flugzeugwerke, initially designated as the TA501, was selected and subsequently produced as the Alpha Jet.
Summary of “Dassault/Dornier Alpha Jet” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Dassault/Dornier Alpha Jet (close-support version) by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/AJET/), CC BY 4.0Specifications
- Length
- 13.23 m43.4 ft
- Wingspan
- 9.11 m29.9 ft
- Max take-off weight
- 7.5 t16,500 lb
- Max speed
- 1,000 km/h621 mph
- Range
- 2,940 km1,827 mi
- Ceiling
- 14,630 m48,000 ft
- Engines
- 2 × SNECMA Turbomeca Larzac 04-C5 turbofan engines
- Power
- 13.24 kN (2,980 lbf) thrust each
- First flight
- 1973
- In service
- 1977
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
