Fairchild Republic A-10 Thunderbolt II

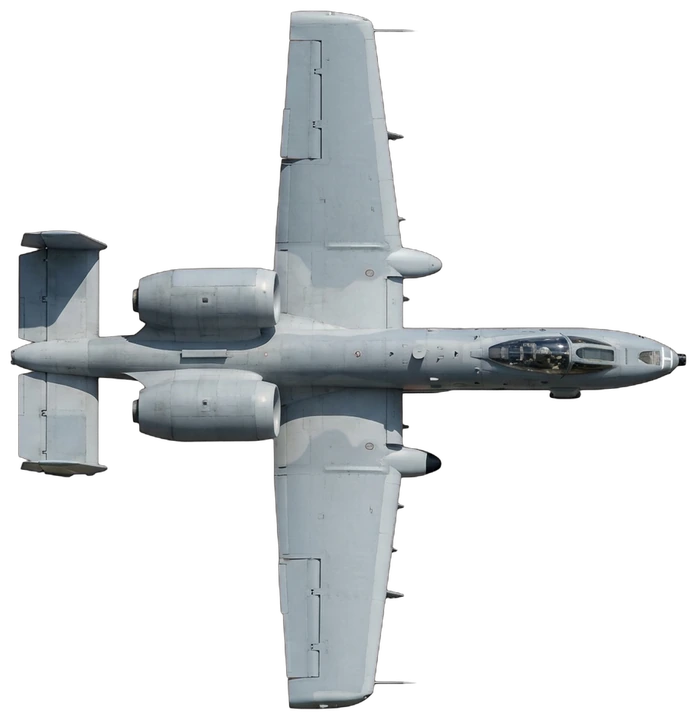

Explore the Fairchild Republic A-10 Thunderbolt II in side view and top view to compare its silhouette and proportions.
From Wikipedia
The Fairchild Republic A-10 Thunderbolt II, also widely known by the nickname Warthog, is a single-seat, twin-turbofan, straight-wing, subsonic attack aircraft developed by Fairchild Republic for the United States Air Force (USAF). In service since 1977, it is named after the Republic P-47 Thunderbolt strike-fighter of World War II, but is commonly referred to as the "Warthog". The A-10 was designed to provide close air support (CAS) to ground troops by attacking enemy armored vehicles, tanks, and other ground forces; it is the only production-built aircraft designed solely for CAS to have served with the U.S. Air Force. Its secondary missions include combat search and rescue, and to direct other aircraft in attacks on ground targets, a role called forward air controller (FAC)-airborne; aircraft used primarily in this role are designated OA-10. It also performs reconnaissance, air interdiction, and maritime surface warfare missions.
Summary of “Fairchild Republic A-10 Thunderbolt II” from Wikipedia, the free encyclopedia, used under CC BY-SA 4.0. Retrieved 2026-10-11.
Download
Free to use, with credit
Use these drawings for anything, commercial too, under Creative Commons Attribution 4.0 International. Credit us like this:
Drawing of the Fairchild Republic A-10 Thunderbolt II by AirwayControl Aircraft Library (https://aircraft.intelsystems.ai/aircraft/A10/), CC BY 4.0Specifications
- Length
- 16.26 m53.3 ft
- Wingspan
- 17.53 m57.5 ft
- Max take-off weight
- 20.9 t46,100 lb
- Cruise speed
- 560 km/h348 mph
- Max speed
- 706 km/h439 mph
- Ceiling
- 13,700 m44,900 ft
- Engines
- 2× GE TF34 (turbofan)
- Power
- 2× 40 kN
- First flight
- 1972
From the AirwayControl spec register, curated from Wikipedia and manufacturer pages. Figures vary by variant.
